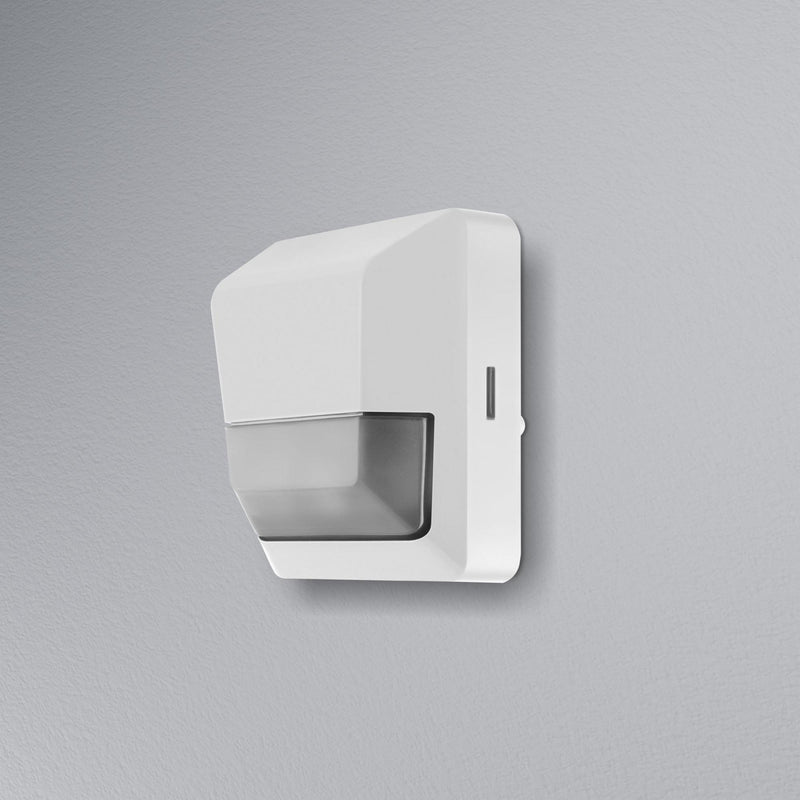

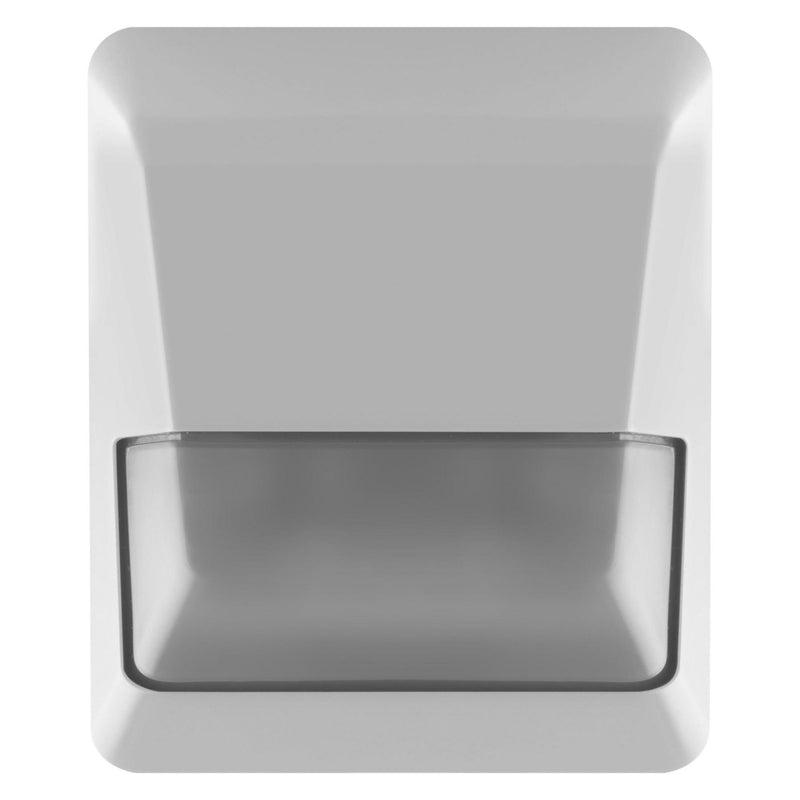

LEDVANCE PIR motion sensor, IP55, white, warranty 3 years

Roll over image to zoom in Click on image to zoom

LEDVANCE PIR motion sensor, IP55, white, warranty 3 years

Name: LEDVANCE PIR motion sensor, IP55, white, warranty 3 years
Brand: Ledakcijas
SKU: 244771
Price: 39.99 EUR
Availability: InStock

SKU: 244771

€39,99

Data sheet

Share this product

ELECTRICAL DATA
Nominal voltage 220...240 V
Network frequency 50...60 Hz
Protection class II
DIMENSIONS AND WEIGHT
Length 76.00 mm
Height 91.00 mm
Width 50.00 mm
Product weight 136.00 g
MATERIALS AND COLORS
Product color White
Body material polycarbonate (PC)
Mercury content 0.0 mg
USE AND ASSEMBLY
Ambient temperature range -20...+40 °C
Storage temperature range -25...+70 °C
Connection type Screw terminal, 3-pole
Type of protection IP55
Dimmable no
Mounting type Surface
Installation location Wall
LIFETIME
Service life L70/B50 at 25 °C 50000 h
SENSOR
Sensor type Light, Motion
Sensor technology Passive infrared (PIR)
Sensor reception angle 180°
Sensor-controlled switching time 2 s...15 min
Motion sensor detection range 12 m
Daylight sensor detection threshold 1...1000 lx
CERTIFICATES AND STANDARDS
Standards CE, EAC, UKCA

Download SKU-244771.pdf

Voltage:

AC: 220-240V, 50/60Hz

Available certificates:

CE/LVD/EMC/RoHS

Manufacturer:

LEDVANCE

Body color:

White

Protection class (IP):

IP65

EAN code:

4058075244771.0

Weight (kg):

0.136

Material:

Size (mm):

76x50x91

Installation height:

1.8-2.5 m

Light:

<0-2000lux

Angle of reception:

180°

Sensor type:

PIR

Intended:

Surface plastering

Designed for current (V):

220.0
