VOLT Polska IPS 500/1000 – 500 W (max. 1000 W) car inverter | 12 V → 230 V

Description

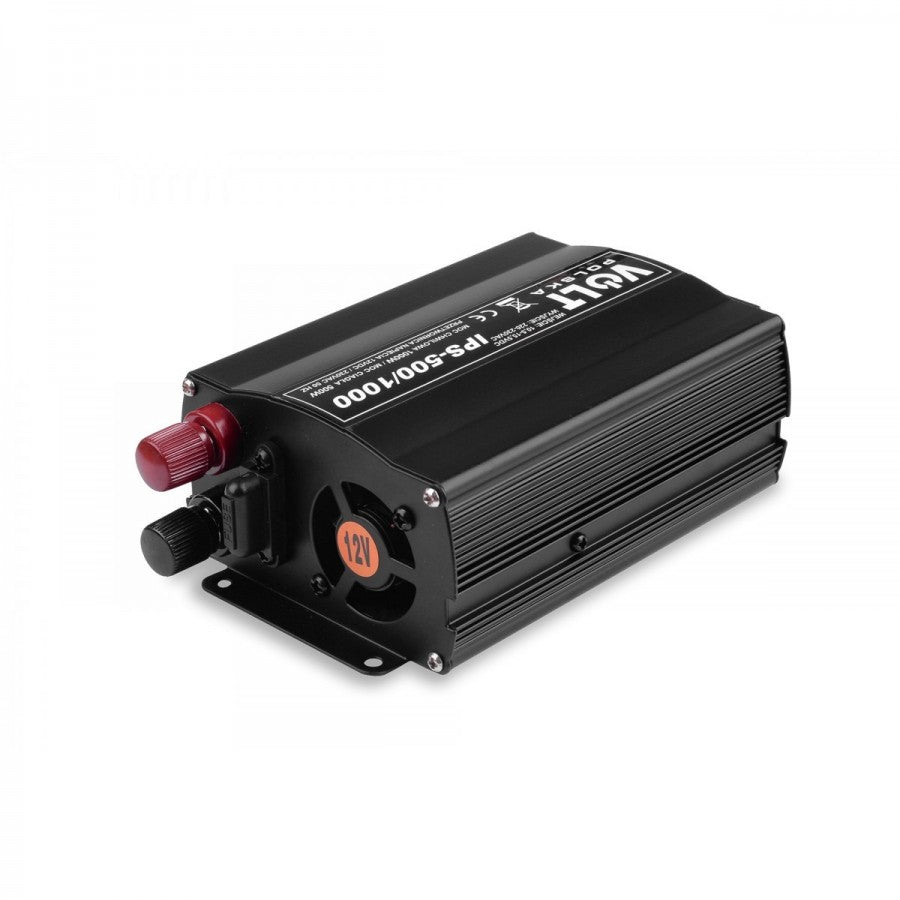

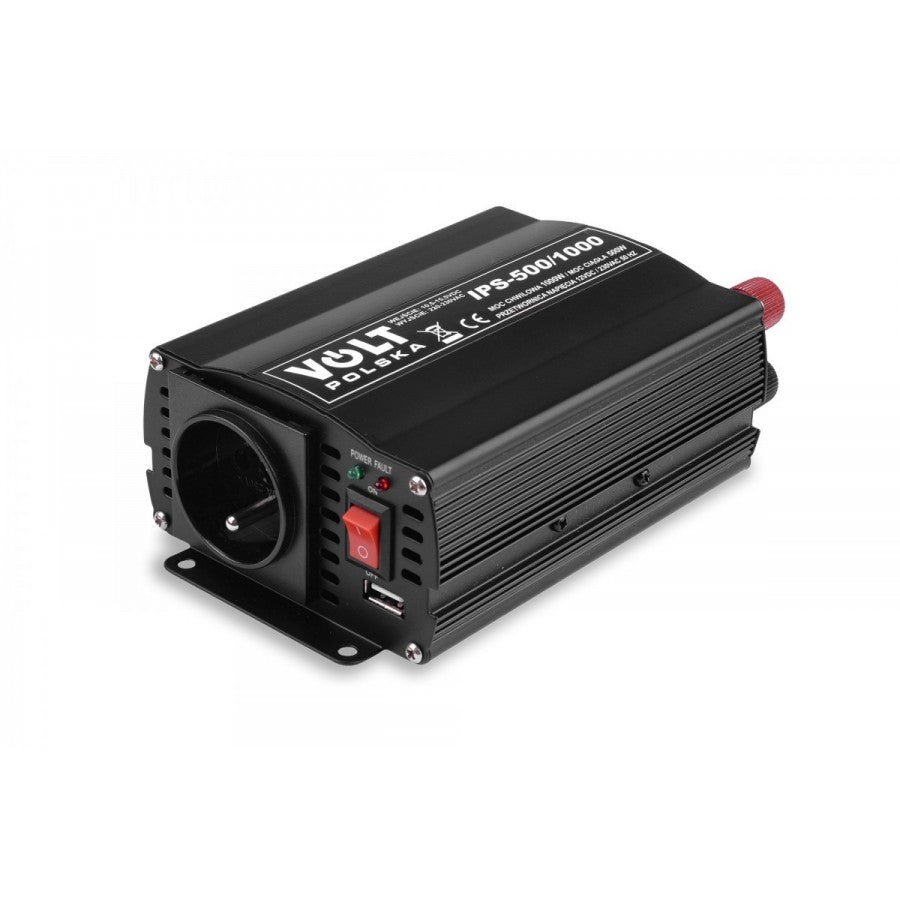

The VOLT Polska IPS 500/1000 is an electronic voltage converter designed convert 12 V DC to 230 V AC. It is suitable for use in vehicles and other locations where 230 V electrical devices need to be powered from a 12 V battery or a vehicle’s electrical system. VOLT Polska

500 W continuous power

The inverter's continuous output power is 500 W, while the short-term peak power reaches 1000 W. VOLT Polska

Modified Sine Wave

The IPS series converter provides a modified sine wave output voltage. It is primarily intended for resistive electrical devices, such as laptops, chargers, electronic power supplies, televisions, and audio/video equipment. VOLT Polska

Built-in Protections

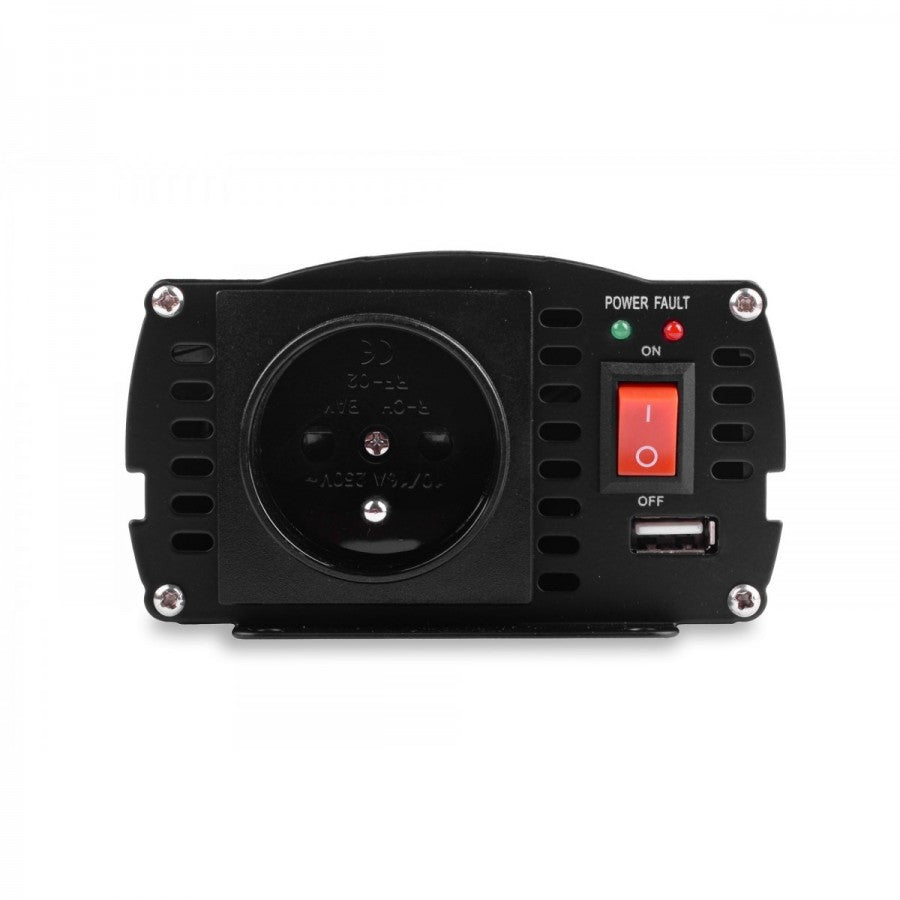

The converter is equipped with protection against short circuits, overheating, under- and overvoltage, as well as overload. A green LED indicator shows normal operation, while a red indicator, accompanied by an audible alarm, signals a fault. VOLT Polska

High efficiency

At full load, the converter's efficiency is approximately 92%, which helps make efficient use of the battery’s energy. VOLT Polska

Connection in the car

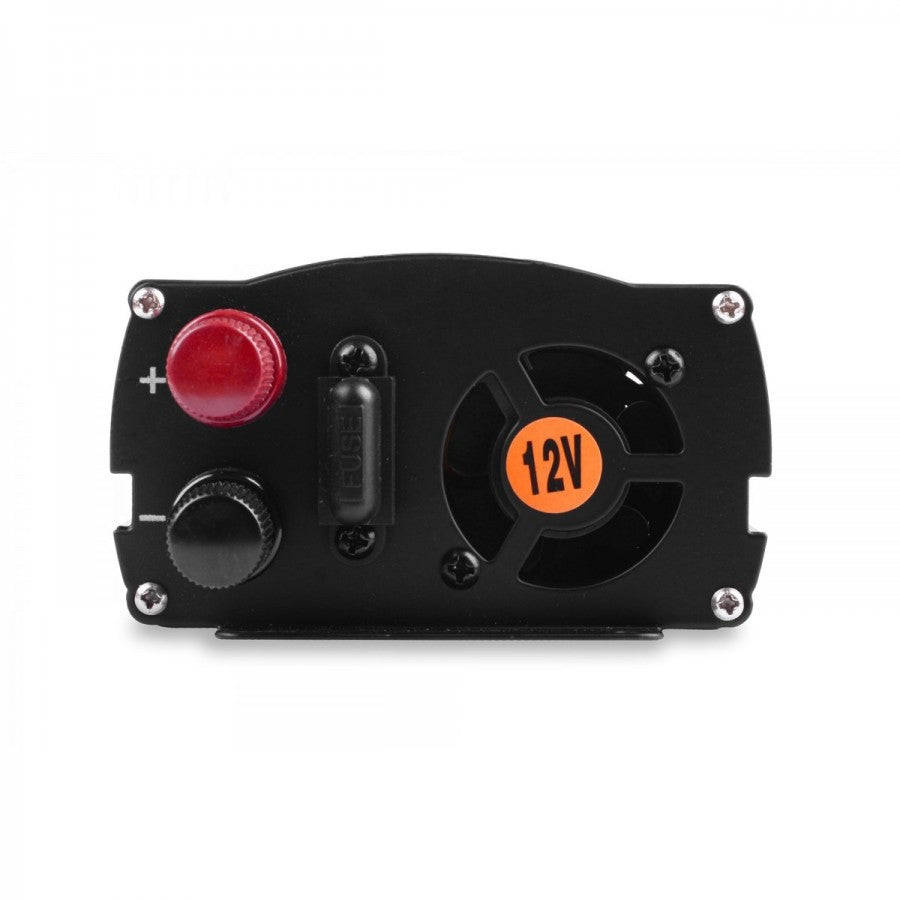

The kit includes a cable for connecting the adapter to a car's 12-volt power outlet. VOLT Polska

Restrictions on Use

Due to the modified sine wave, the manufacturer does not recommend connecting devices with induction motors or transformers, such as pumps and certain power tools. VOLT Polska

Specifications

Manufacturer: VOLT Polska
Model: IPS 500/1000
Manufacturer code: 3IPS651012
EAN: 5903111886141
Product type: voltage converter
Battery voltage: 12 V
Input voltage: 10.5–15.5 V
Output voltage: 225–235 V AC
Continuous power: 500 W
Maximum peak power: 1000 W
Output frequency: 50 Hz ±2 Hz
Output waveform: modified sine wave
Efficiency at full load: approximately 92%
Low-voltage protection threshold: 10.7 V ±0.3 V
Operating temperature: −10 °C to +40 °C
Dimensions: 176 × 105 × 60 mm
Net weight: 0.656 kg
Package dimensions: 210 × 140 × 65 mm
Package weight: 0.894 kg
