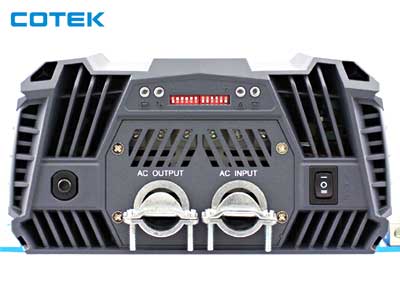

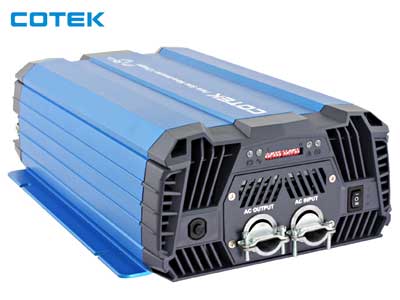

SC-1200 Inverter/Charger, 230 V / 12 V, 1200 VA pure sine wave inverter with a 50 A charger

Specifications

Dimensions: 386 × 251 × 116 mm

Weight: 4.55 kg

Model: SC-1200

Voltage: 230 VAC / 12 V

Power: 1.20 kW

Certifications: UL & CE, EN 62368-1, CISPR 25, ISO 7637-2, EN 55032 Class A, EN 55024 Class A, EN 61000

Information

A bidirectional “all-in-one” design in a compact housing with a 3-stage charging function, a wide operating temperature range, and the option to connect a remote control panel.

Certified to UL and CE standards.

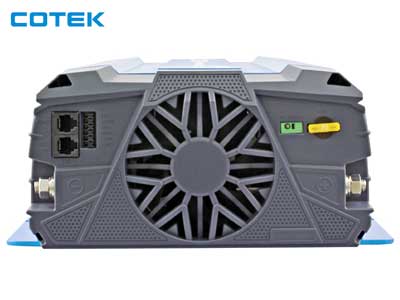

Equipped with a temperature- and load-controlled cooling fan.

Inverter Specifications

Input: 10.5–16.5 V DC, max. 132 A

Output voltage (selectable):
200 / 220 / 230 / 240 VAC ±3%

Output frequency (selectable):
50 / 60 Hz ±0.3 Hz

Output waveform: pure sine wave, THD <3%

Power:

• 1200 VA continuously
• 2,400 VA (2 seconds)

Maximum efficiency: 89%

No-load current consumption: <3.0 A (@12.5 V)

Standby power consumption: <0.4 A

Defense

Protection against:

• input voltage that is too high or too low
• incorrect polarity
• short circuit
• overload
• overheating

Charger Specifications

AC input: 187–264 V

Input current:

• 3.9 A rated at 230 VAC
• max. 16 A

Power factor correction: >0.95

Maximum efficiency: >88%

Charging current:
12.5 A / 25 A / 37.5 A / 50 A

Maximum output voltage: 14.4 V DC (for GEL batteries)

Battery temperature compensation: -25 mV/°C

3-level battery charging modes:

• Bulk
• Absorption
• Float

Working Conditions

Full load: -20 °C to +50 °C

Power derating: 40 W/°C from +51 °C to +60 °C

Maximum relative humidity: 93%, non-condensing

Warranty: 24 months
