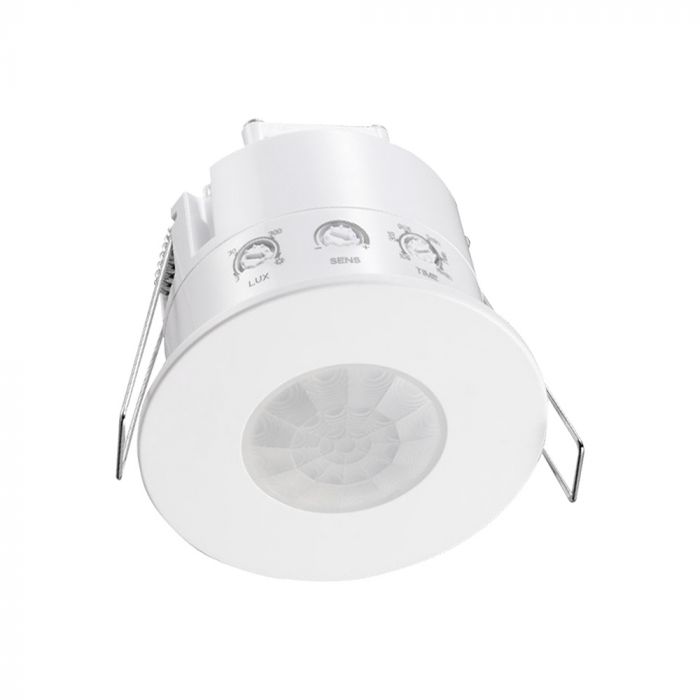

Recessed PIR motion sensor with integrated microchip, IP54

Built-in PIR motion sensor with an integrated microchip detects heat signals.

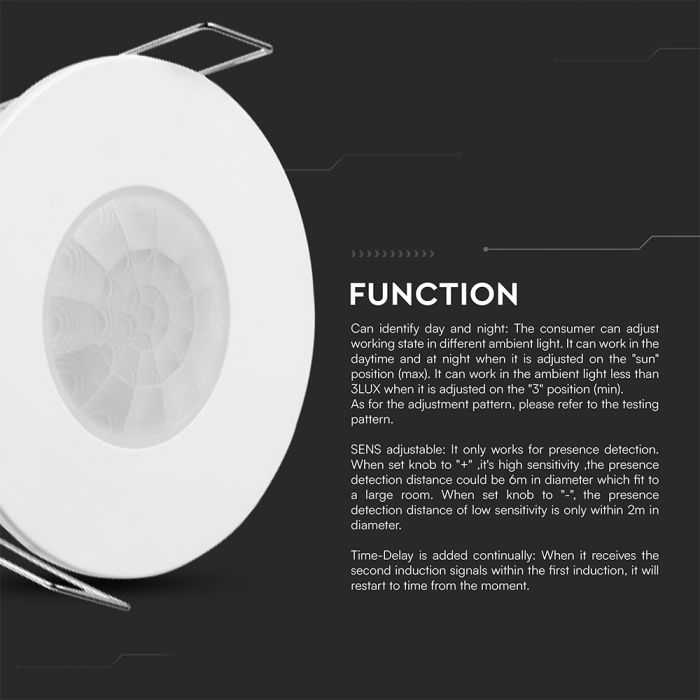

Adjustable time delay and ambient light level for various conditions.
High-quality sensors ensure immediate response.
IP54 protection rating.
An effective energy-saving and security system.
Compatible with the entire V-TAC LED range (up to 1,000 W).

Product Specifications

Model: VT-81042
Motion detection speed: 0.6–1.5 m/s
Ambient light sensitivity: <3–2000 LUX (adjustable)

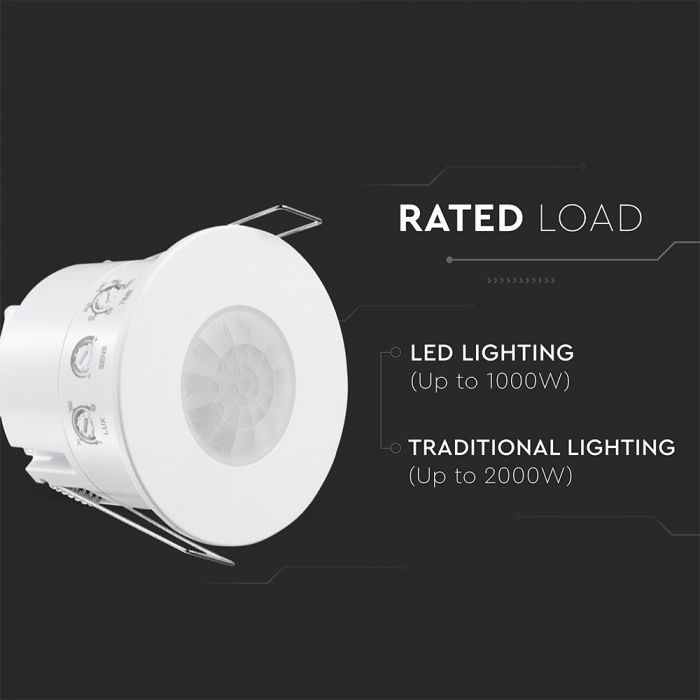

Maximum load: 1000 W (LED)

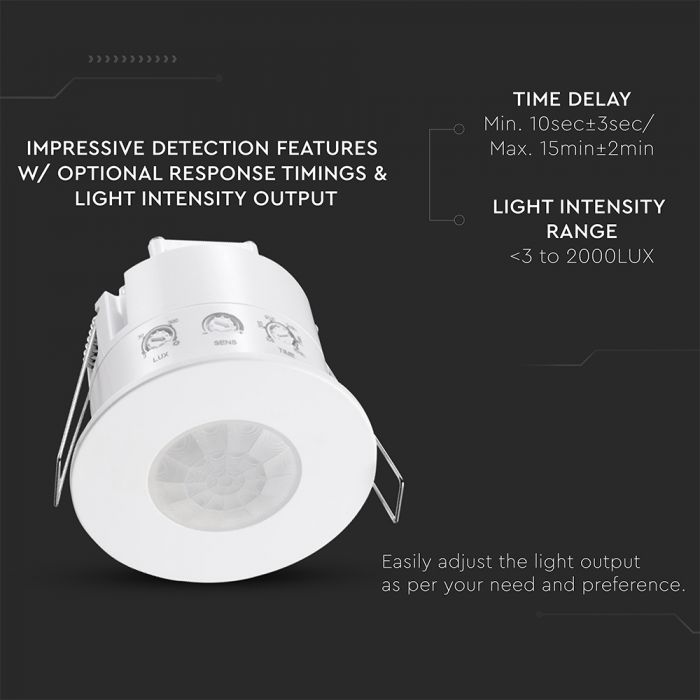

Time delay: min. 10 s ±3 s, max. 15 min ±2 min

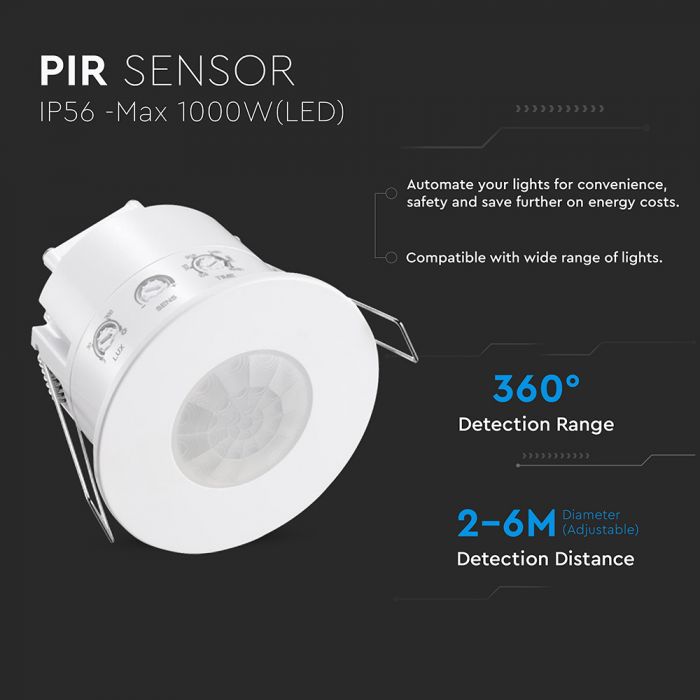

Detection angle: 360°
Cutout size: 63–66 mm
Detection range: 2–6 m (diameter, adjustable)

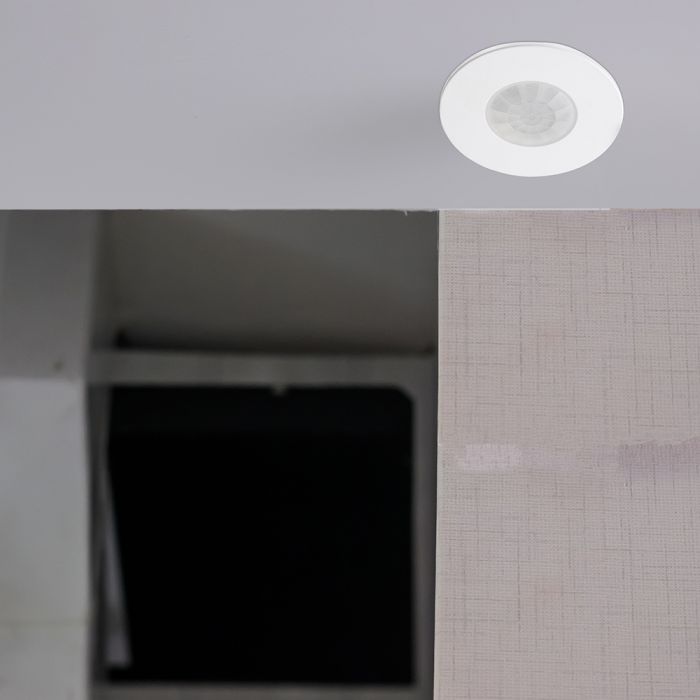

Installation method: Built-in
Input voltage: AC 220–240 V, 50/60 Hz
Body color: White
Housing material: PC (polycarbonate)

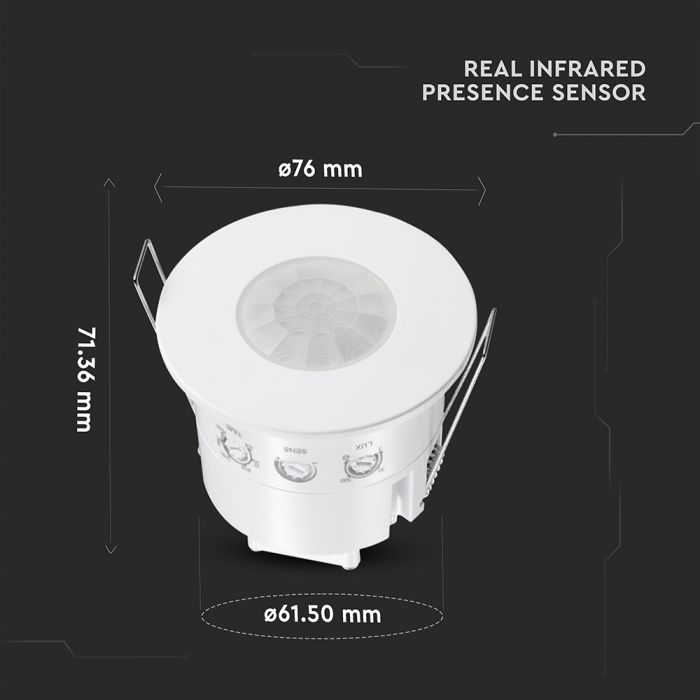

Dimensions: 76 × 71.4 mm
Sensor type: PIR
Protection class: IP54
