Description
Main parameters
-

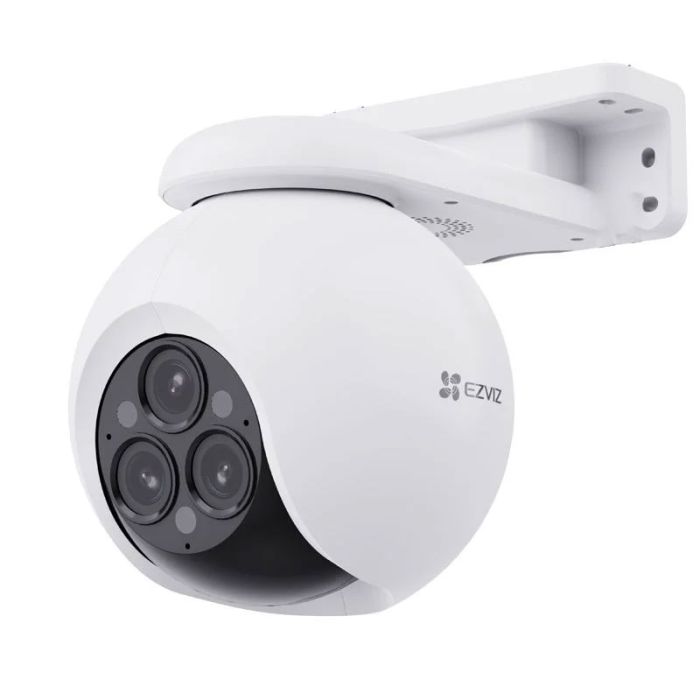

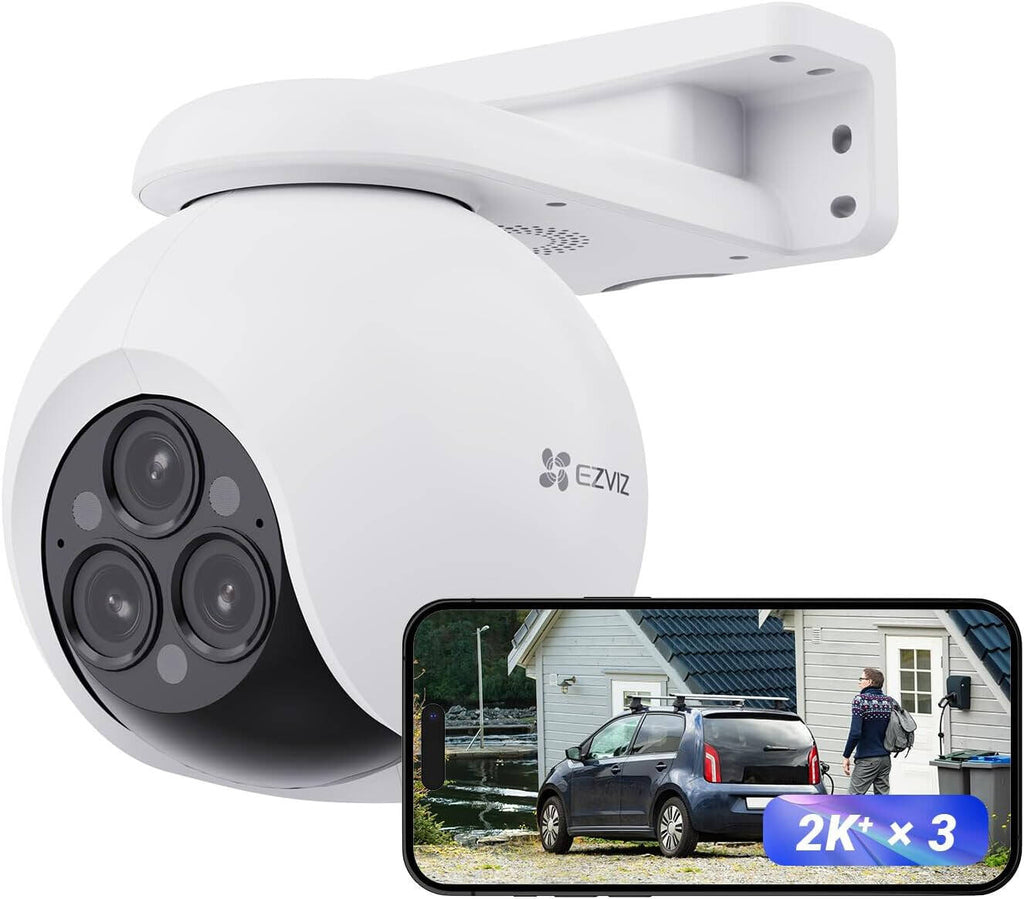

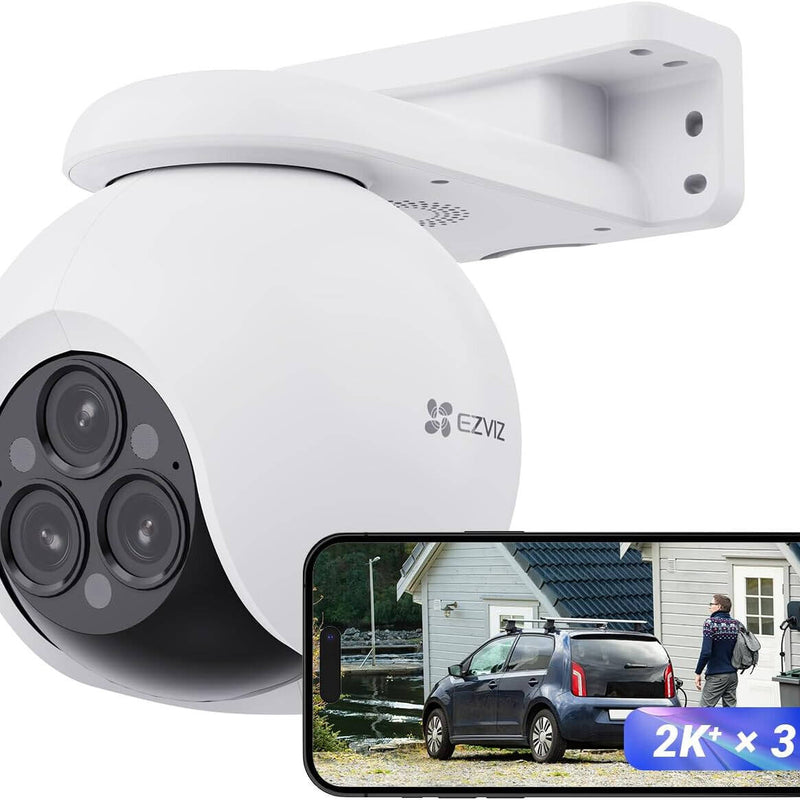

Modelis: CS-H80f-R100-8G444WKFL
-
Sensor: 1/3" Progressive Scan CMOS × 3
-
Shutter Speed: Self-adjusting switch
-
Lens:
-
2.8 mm @ F1.6 - Angle of view: 54° (vertical), 96° (horizontal), 110° (diagonal)
-
6 mm @ F1.6 - Angle of view: 28° (vertical), 52° (horizontal), 60° (diagonal)
-
12 mm @ F1.6 - angle of view: 14° (vertical), 25° (horizontal), 29° (diagonal)
-
-
PT angle of view: Pan: 340°, Tilt: 70°
-
Minimum illumination: 0.05 Lux @ (F1.6, AGC on), 0 Lux with IR (data from EZVIZ labs)
-
Lens mount: M12
-
Day/Night: IR filter with auto switching
-
Noise reduction: 3D DNR
-
WDR: Digital WDR
-
BLC: Support
-
Night Vision: Up to 30 m / 98 ft
-
Maximum Resolution: 2560×1440
-
Frame Rate: Self-adaptive depending on network transmission
-
Video Compression: H.265 / H.264
-
H.265 Profile: Main Profile
-
Video Bit Rate: Quad HD / Full HD / HD with adjustable bit rate
-
Audio bit rate: Self-adaptive
Network and Connectivity
-
Wi-Fi Standards: IEEE 802.11b/g/n
-
Frequency Range: 2.4 GHz ~ 2.4835 GHz
-
Channel Bandwidth: 20 MHz Supported
-
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
-
Data rate:
-
11b: up to 11 Mbps
-
11g: up to 54 Mbps
-
11n: up to 150 Mbps
-
-
Wi-Fi connectivity: AP mode pairing
-
Protocols: EZVIZ Cloud proprietary protocol
-
Wired: RJ45 × 1 (10M/100M adaptive Ethernet port)
Functionality
-
Smart Detection: Artificial Intelligence human and vehicle shape recognition
-
Alert Zones: Configurable
-
Two-way audio: Supported
-
Auto zoom: Supported
-
Additional Features: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage and Cloud Services
-
Internal memory: Supports microSD cards up to 512 GB
-
Cloud Storage: EZVIZ CloudPlay (subscription required)
Environmental and physical characteristics
-
Operating temperature: -30°C to +50°C
-
Humidity: Up to 95% (non-condensing)
-

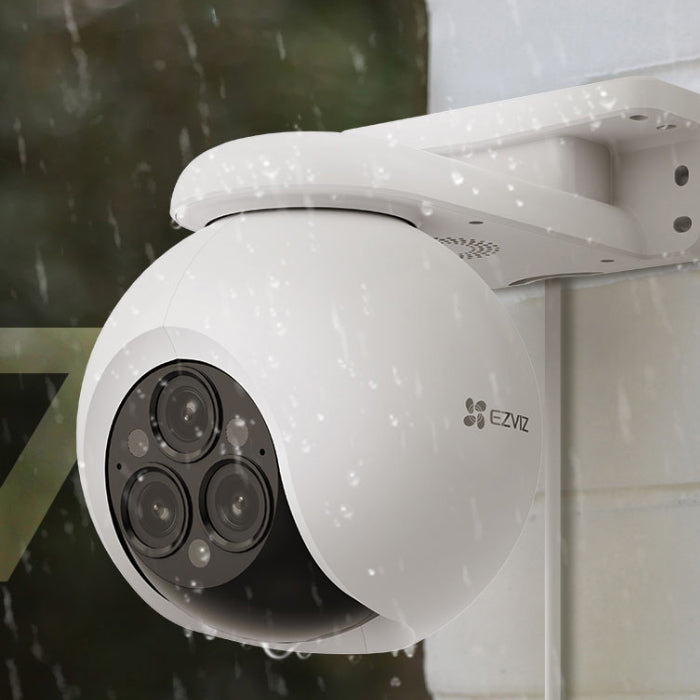

IP protection class: IP67
-
Power supply: DC 12 V / 1.5 A
-
Max. Power consumption: 18 W
-
Dimensions: 168 × 112 × 156 mm (6.61 × 4.41 × 6.14 inches)
-
Package size: 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inches)
-
Weight:
-
Device: 575.7 g (20.31 oz)
-
With packaging: 979.89 g (34.56 oz)
-
Includes
-
Camera
-
Drilling Template
-
Waterproof kit
-
Screw Set
-
Power adapter
-
2× Regulatory information leaflets
-
Quick start guide
Certificates
CE / UL / WEEE / RoHS / REACH
Type: IP Camera
Brand: EZVIZ
Model: CS-H80F
Resolution: 4 MP + 4 MP + 4 MP
Connectivity: Wi-Fi (2.4GHz) or Ethernet (RJ45)
Patrol Mode: Yes
Night Vision: Colour Night Vision
People and Vehicle Recognition: Yes
Detection Distance: Up to 30 m
Detection Distance: Up to 50 m
Video Compression: H.265
Memory card support: microSD up to 512 GB
