12W (1320 lm) CREE LED panel, recessed, white, square, 170 x 170 x 28.4 mm, recessed depth 130 mm, IP20, V-TAC, 3-in-1

Description

A square, recessed LED mini panel with backlighting and a CCT switch that allows you to select the most suitable color temperature. The panel is equipped with an efficient SMD CREE LED chip and a high-quality power driver for stable operation. Suitable for offices, conference rooms, exhibition halls, lobbies, studies, kitchens, and other indoor spaces.

Features

Durable plastic housing

LED Mini Panel for Rear Lighting

A high-quality power supply driver for long-lasting and reliable operation

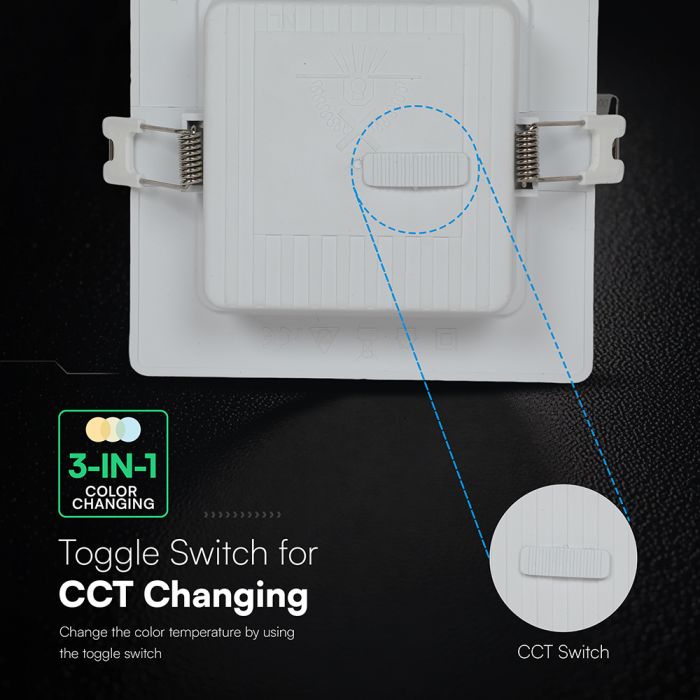

CCT switch for selecting the desired light color temperature

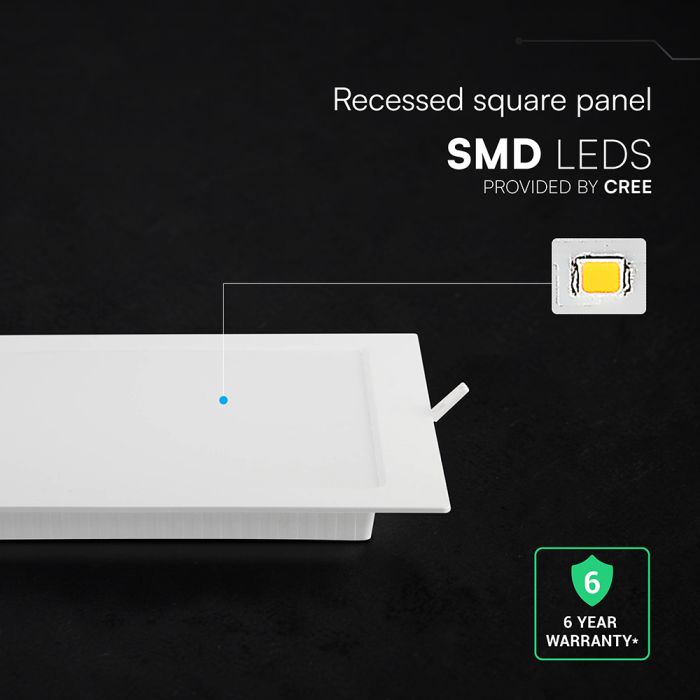

High-efficiency SMD CREE LED chip

Does not contain lead or mercury

An environmentally friendly solution

Suitable for offices, conference rooms, exhibition halls, lobbies, private offices, and kitchens

Specifications

Model: VT-61012CCT
Color temperature: 3 light tones
Cutout size: 150 x 150 mm
On/off cycles: >15,000
Installation type: recessed
Color rendering index: >80
Power: 12 W
Luminous flux: 1,320 lm
Input voltage: 220–240 V, 50/60 Hz
Housing color: white
Material: plastic

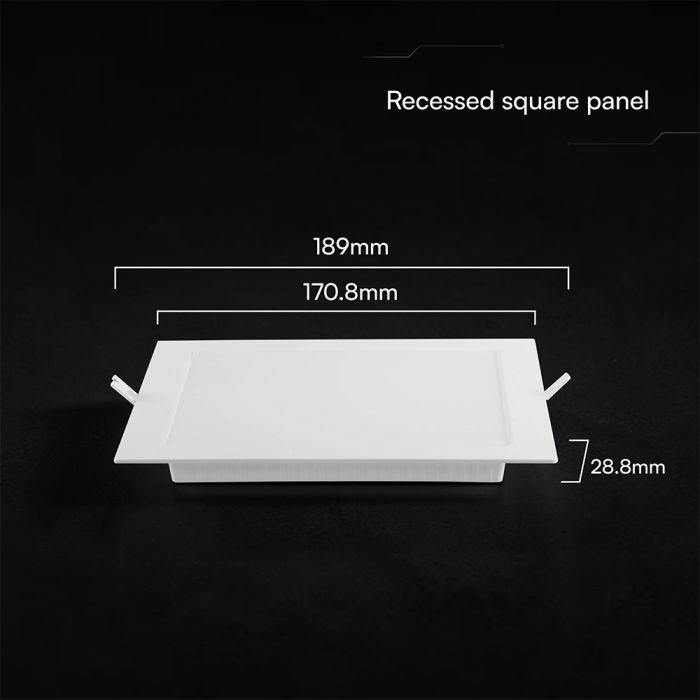

Dimensions: 189 x 170.8 x 28.8 mm
Operating temperature: -20 °C to +45 °C
Shape: square
LED chip type: SMD CREE chip

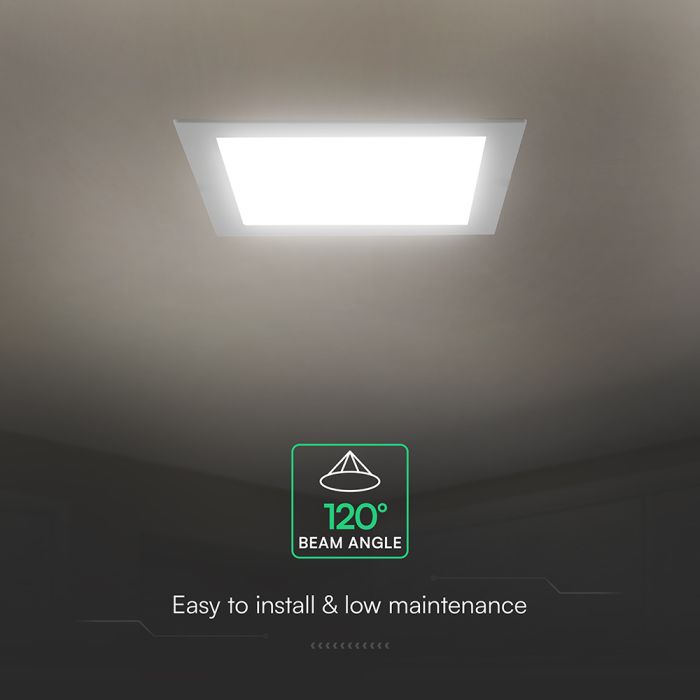

Beam angle: 120°
Energy efficiency class: E
Protection class: IP20
Energy savings: 85%
Lifespan: 30,000 h
