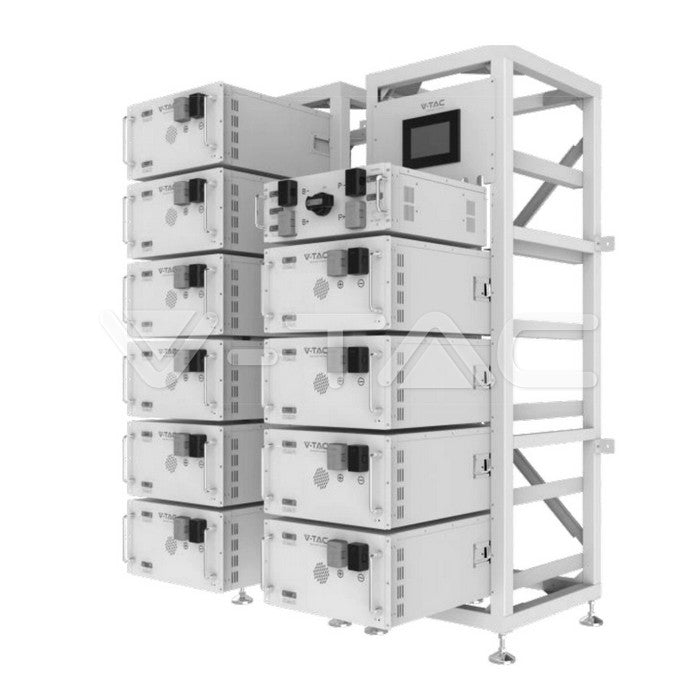

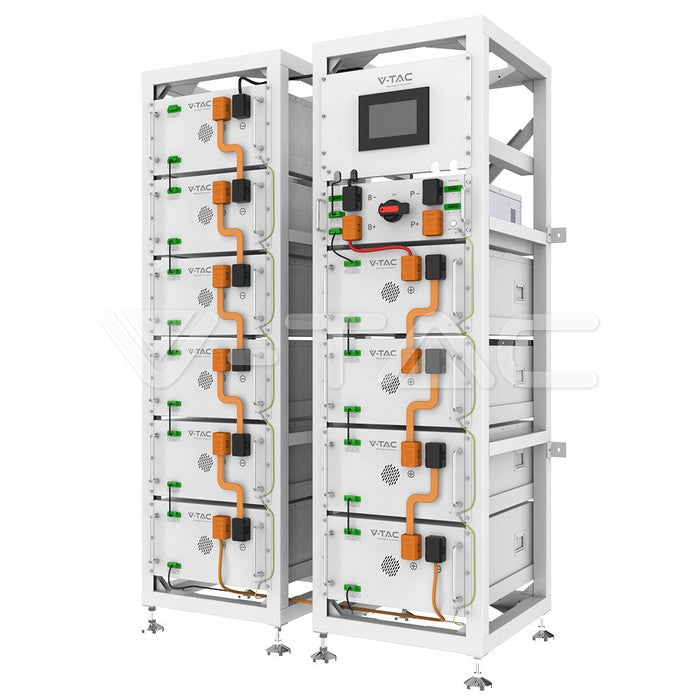

105kWh HV Battery Pack OLITER, IP20

The PV kit includes:

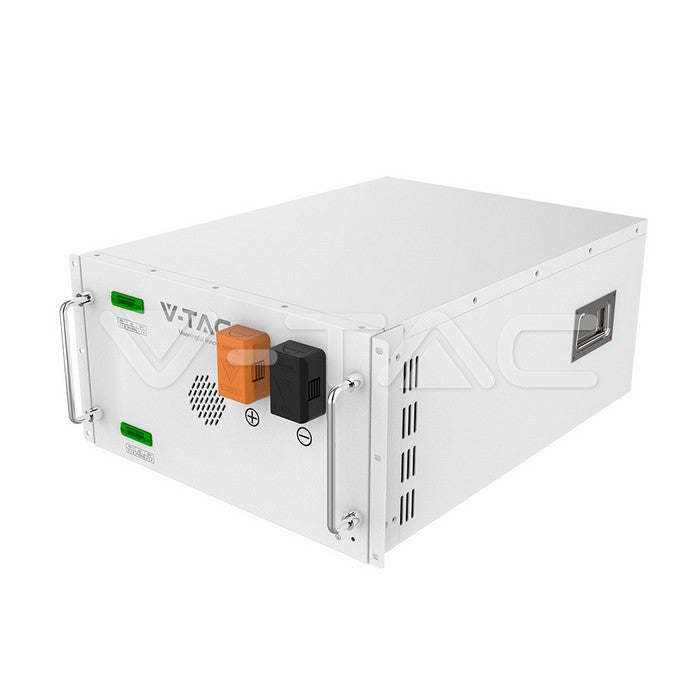

• 10 pcs - 10.54kW rechargeable Li-On battery module SKU: 12259;

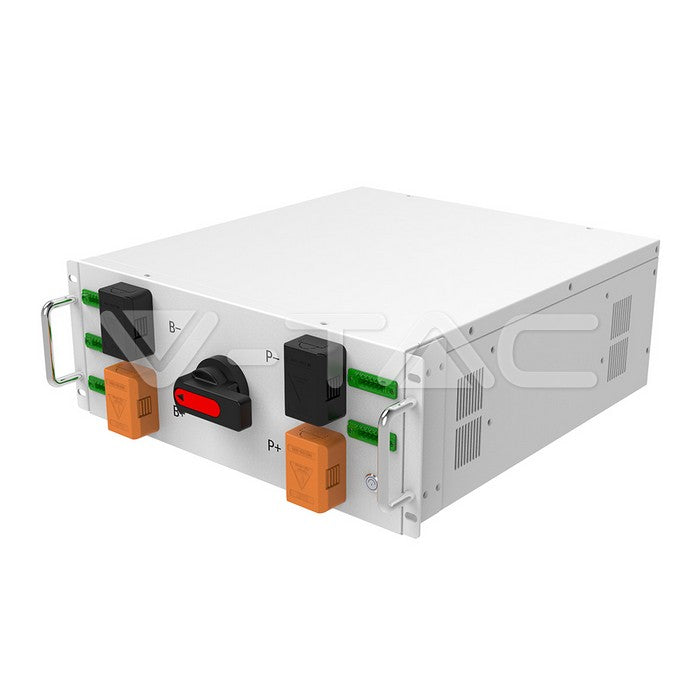

• 1 piece - High Voltage Battery Cluster Control Box SKU: 12261;

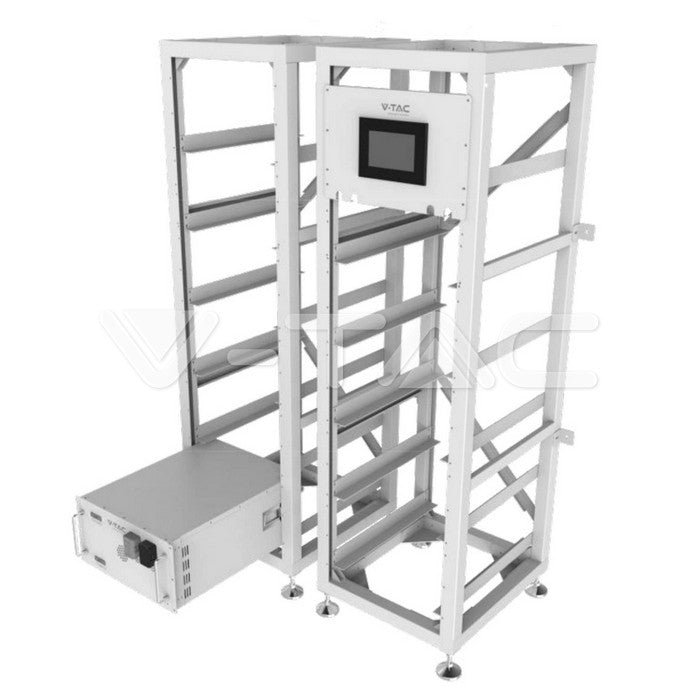

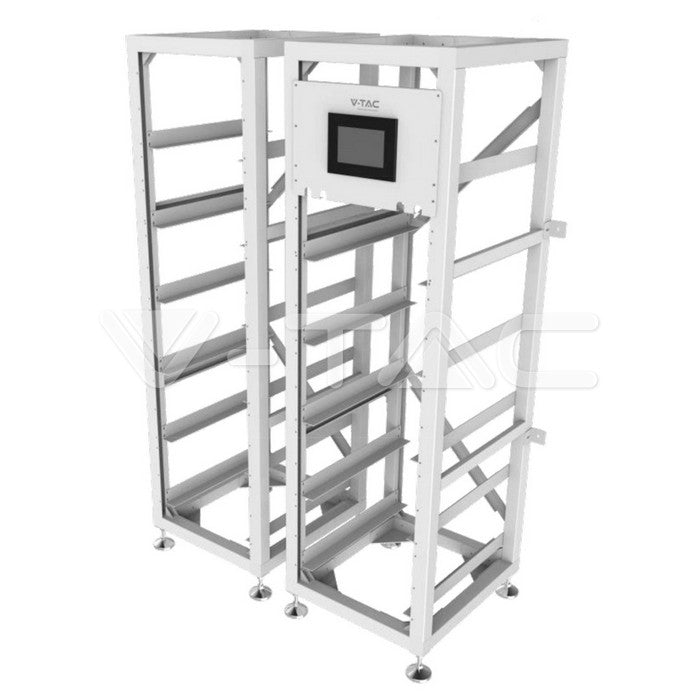

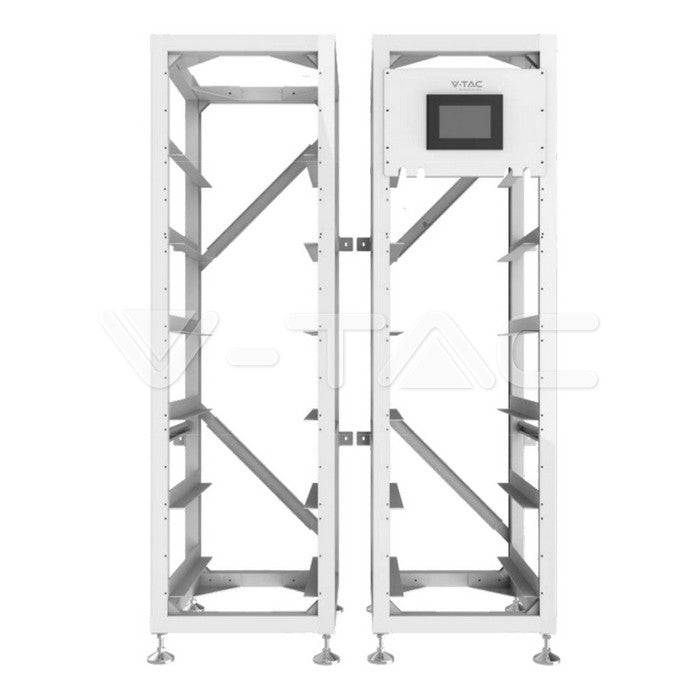

• 1 piece - Frame for 10 batteries and 1 BMS SKU: 12260;

• Specification
  General information
  Electrical data
  Current:

  • Recommended charge/discharge current: 100A
    Power:

  • System rated capacity: 105.4kWh (10 x 10.54kWh);

  • System usable capacity: 94.8kWh;
    Voltage:

  • System nominal voltage: 512V;

  • System operating voltage: 464-568V;

  Housing details
  Mounting: On frame

  Options
  IP rating: IP20
  Battery capacity: 206Ah, LiFePO4

  Working conditions
  Charging: 0～55℃/Discharging: -20℃～+55℃

  Dimensions
  Size: 1200 x 620 x 1870 mm

  Product Details
  Order Code: 12297
  Product Code: OHR105.4K-206
  Product Weight: 1029 kg

  Additional
  Release date: 28.11.2024
  Brand: V-TAC
  Warranty: 10 years
