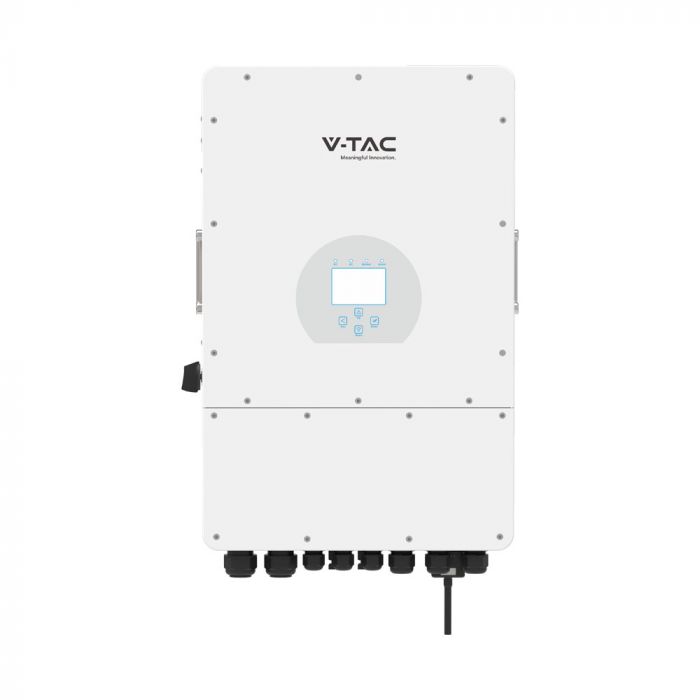

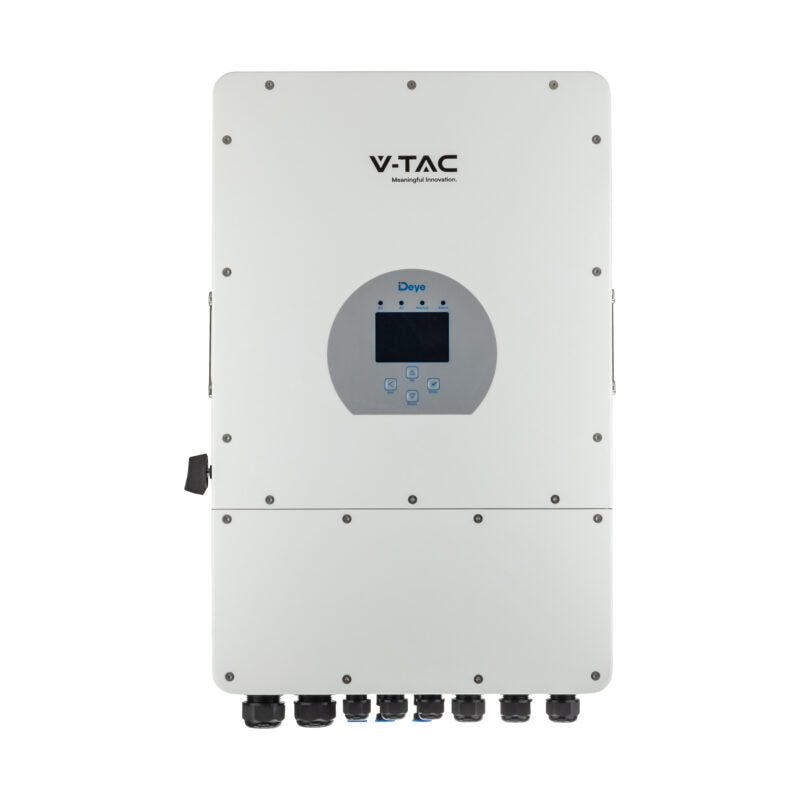

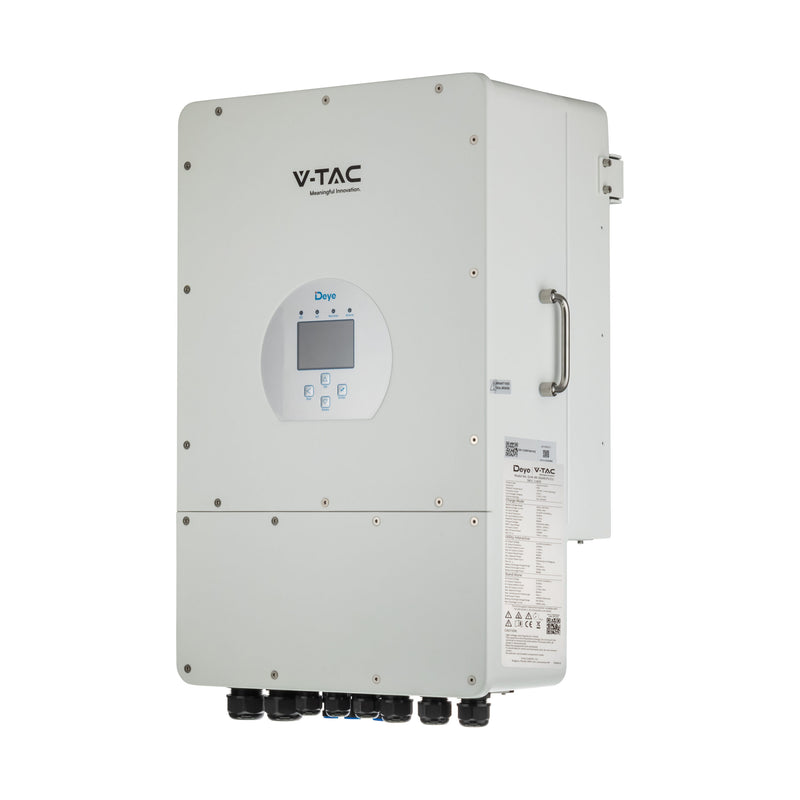

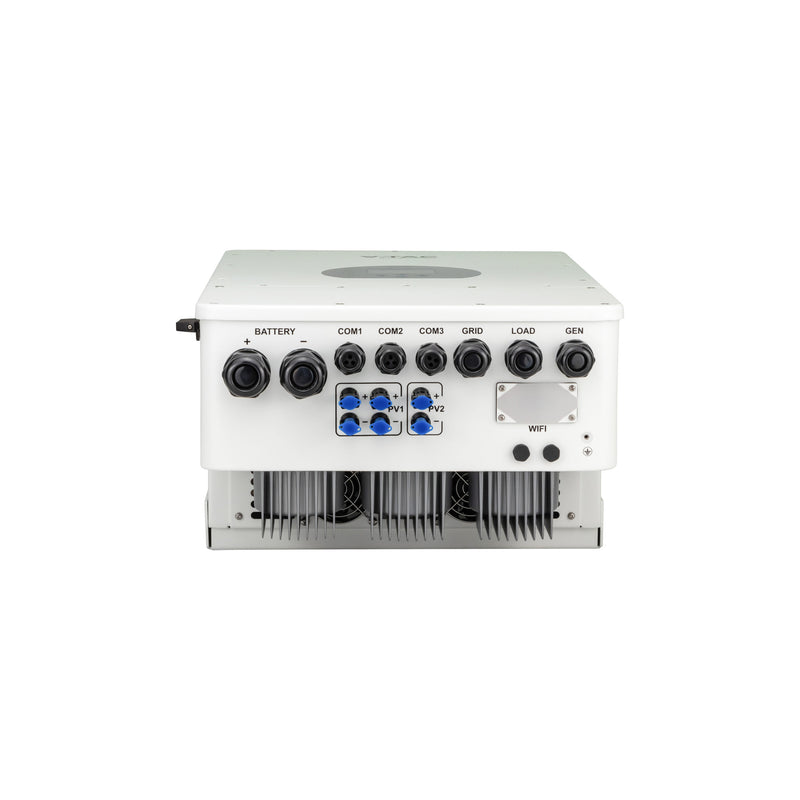

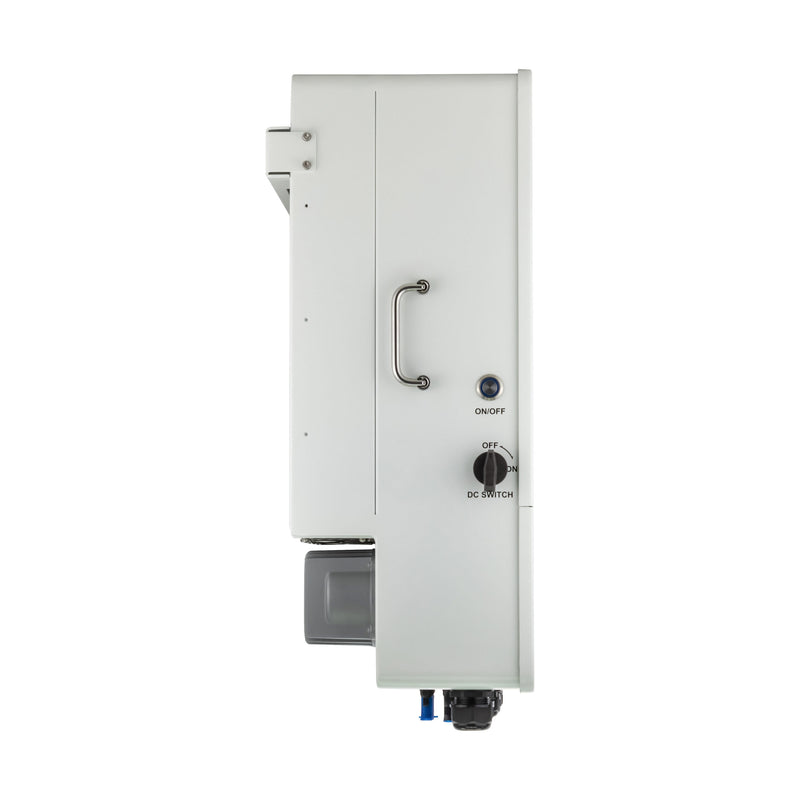

Name: Deye 8 kW trīsfāžu LV hibrīda invertors SUN-8K-SG04LP3-EU, "Sadales tīkla" verificēts, 380 V AC, IP65, 10 gadu garantija
Brand: DEYE
SKU: 11835
Price: 1777.0 EUR
Availability: OutOfStock

Brīvdienu kods ir AKTĪVS

Izmanto atlaižu kodu BRIVDIENA un saņem papildus -7% atlaidi savam pirkumam!

Deye 8 kW trīsfāžu LV hibrīda invertors SUN-8K-SG04LP3-EU, "Sadales tīkla" verificēts, 380 V AC, IP65, 10 gadu garantija

Deye 8 kW trīsfāžu...

Deye 8 kW trīsfāžu LV hibrīda...

€1.777,00 €2.188,00

Bezmaksas Piegāde

Uz pakomātiem no €100, ar kurjeru no €300

30 Dienu Atgriešana

Visām precēm bez lietošanas pazīmēm

Preces apraksts

Model	SUN-5K-SG04LP3-EU	SUN-6K-SG04LP3-EU	SUN-8K-SG04LP3-EU	SUN-10K-SG04LP3-EU	SUN-12K-SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	120	150	190	210	240
Max.Discharging Current(A)	120	150	190	210	240
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	2
PV String Input Data
Max DC Input Power（W）	6500	7800	10400	13000	15600
Max DC Input Voltage（V）	800
Start-up Voltage（V）	160
MPPT Voltage Range（V）	200-650
Rated DC Input Voltage(V)	550
Max. Operating PV Input Current (A)	13+13			26+13
Max. Input Short-Circuit Current (A)	17+17			34+17
No.of MPP Trackers/No.of String Per MPP Tracker	2/1+1			2/2+1
AC Input/Output Data
Rated AC Input/Output Active Power（W）	5000	6000	8000	10000	12000
Max AC Input/Output Apparent Power （VA）	5500	6600	8800	11000	13200
Peak Power (off-grid)（W）	2 times of rated power, 10s
Rated AC Input/Output Current（A）	7.6/7.2	9.1/8.7	12.1/11.6	15.2/14.5	18.2/17.4
Max AC Input/Output Current（A）	8.4/8	10/9.6	13.4/12.8	16.7/15.9	20/19.1
Max. Three-phase Unbalanced Output Current（A）	11.4/10.9	13.6/13	18.2/17.4	22.7/21.7	27.3/26.1
Max Continuous AC Passthrough (grid to load)（A）	45
Rated Input/Output Voltage/Range(V)	220/380V，230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	97.0%
MPPT Efficiency	＞99%
Equipment Protection
DC Polarity Reverse Connection Protection	YES
AC Output Overcurrent Protection	YES
AC Output Overvoltage Protection	YES
AC Output Short Circuit Protection	YES
Thermal Protection	YES
DC Terminal Insulation Impedance Monitoring	YES
DC Component Monitoring	YES
Ground Fault Current Monitoring	YES
Power Network Monitoring	YES
Island Protection Monitoring	YES
Earth Fault Detection	YES
DC Input Switch	YES
Overvoltage Load Drop Protection	YES
Residual Current (RCD) Detection	YES
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
Communication Interface	WIFI, RS485, CAN
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise	≤ 55 dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	422×658×254（Excluding connectors and brackets）
Weight[kg]	38
Warranty	5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
