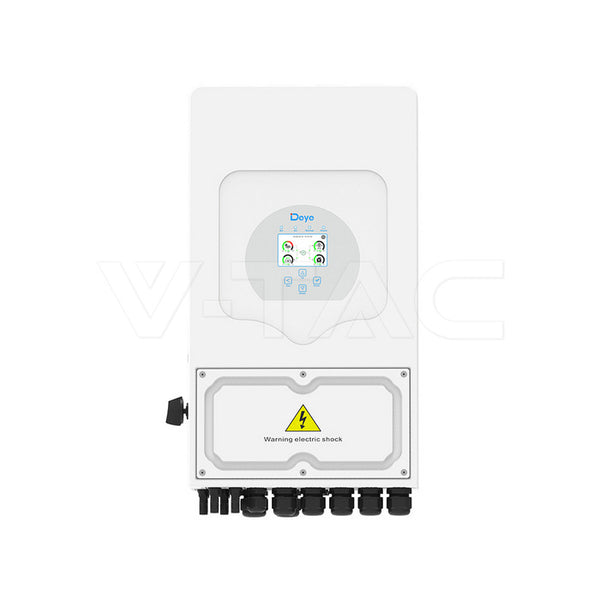

3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries
Roll over image to zoom in Click on image to zoom
3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries
3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries
3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries
3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries
3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries
3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries
3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries
3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries

3.6kW Single Phase 2 MPPT Hybrid Inverter, V-TAC / DEYE SUN-3.6-SG03LP1-EU, “Distribution Network” verified, 5 year warranty, IP65, LCD display, compatible with low voltage batteries

SKU: 11725
€1.499,00 €892,00
Save €607,00
Data sheet

Description

More power / Safe and reliable / Smart / User-friendly

SUN 3.6/6K-SG ， hybrid inverter is suitable for residential and light commercial use, increasing the self-consumption rate of solar energy and increasing energy consumption. During the day, the PV system generates electricity that will be initially provided to the loads. Excess energy will then charge the battery using SUN 3.6/6K-SG. Finally, the stored energy can be released when the load requires it. The battery can also be recharged by a diesel generator to ensure uninterrupted power supply in the event of a mains failure.

It is equipped with an RS485/CAN port for battery communication

Remote shut-off function

Intelligent monitoring platform
Thanks to the intelligent monitoring platform, Deye's full series inverter products support remote shutdown immediately when an incident occurs. Parameter setting and FW update remotely, which facilitates PV plant O&M.

  • Colour touch LCD, IP65 protection
  • 6 time periods for battery charging/discharging
  • Max. Charging/discharging current 120A
  • Max.16pcs in parallel
  • DC pair and AC pair to retrofit existing solar system
  • Support energy storage from diesel generator
  • 24/48V low voltage battery, safe and reliable
  • Unique Smart Load application
  • 4ms fast transfer from grid to off-grid mode, resulting in traditional fixed frequency air conditioner working well

Technical Specifications

Model SUN-3.6K-SG03LP1-EU SUN-5K-SG03LP1-EU SUN-6K-SG03LP1-EU
Battery input data
Battery Type Lead acid or lithium ion
Battery voltage range (V) 40 ~ 60 V
Max. Charging current (A) 90A 120A 135A
Max. Discharge current (A) 90A 120A 135A
Charging curve 3 stages / equalisation
External temperature sensor Optional
Li-Ion battery charging strategy Self-adaptive BMS
PV string input data
Max. DC input power (W) 4680W 6500W 7800W
PV input voltage (V) 370 V (125 V-500 V)
MPPT range (V) 150 ~ 425 V
Full load DC voltage range 300 ~ 425 V
Start-up voltage (V) 125V
PV input current (A) 13A+13A
Max. PV ISC (A) 17A+17A
Number of MPPT trackers 2
Number of strings per MPPT tracker 1+1
AC output data
Rated AC output and UPS power (W) 3600W 5000W 6000W
Max. AC Output Power (W) 3690W 5500W 6600W
Maximum power (off mains) 2 times rated power, 10 S
AC output rated current (A) 16.4A 22.7A 27.3A
Max. AC output current (A) 18A 25A 30A
Max. Continuous AC power (A) 35A 40A
Power factor 0,8 leading to 0,8 lag
Output frequency and voltage 50/60 Hz; 220/230/240 V AC (single phase)
Type of grid Single phase
Current harmonic distortion THD<3% (linear load <1.5%)
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT efficiency 99.90%
Protection
PV entrance lightning protection Integrated
Islanding protection Integrated
PV string input reverse polarity protection Integrated
Insulation resistor detection Integrated
Residual current monitoring unit Integrated
Output current protection Integrated
Output short-circuit protection Integrated
Output surge protection Integrated
Surge protection DC Type II / AC Type II
Certificates and standards
Mains regulation VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3: 2019-05
Safety rules IEC62109-1, IEC62109-2
EMC EN61000-6-1, EN61000-6-3
General data
Operating temperature range (℃) -25~60℃, >45℃ Decrease
Cooling Smart cooling
Noise (dB) <30 dB
Communication with BMS RS485; VAR
Weight (kg) 20.5
Size (mm) 330 W × 580 H × 232 D
Degree of protection IP65
Installation style Wall mounted
Warranty 5 years

Specification

Download 11725-Warranty-Inverters-Deye_1.pdf
Download 11725-EMC-BL-DG2251011D03_BL-DG2251011D04.pdf
Download 11725-Ning_Sun-3-6K_iPACK_C6.5_GCC_CEI_021_ita_22-271-00.pdf
Download 11725-Ning_Sun-3-6K_iPACK_C6.5_GCC_CEI_021_ita_22-271-00.pdf
Download 11725-BL-DG2250169D02-LVD.pdf
Download 11725-BL-DG2250169D01-LVD.pdf
Download 11725-Ning_Sun-3-6K_RW-M6.1_GCC_CEI_021_ita_22-404-00.pdf
Download 11725-Ning_Sun-3-6K_VT-48160_GCC_CEI_021_ita_24-057-00.pdf
Download 11725-Ning_Sun-3-6K_VT-12040B_GCC_CEI_021_ita_23-028-00.pdf
Download 11725-3.6kWh-Technical-Specification.pdf
Download 11725-Deye-SUN-Series-Hybrid-Inverter-10-Year-Limited-Warranty-for-Installation-in-Europe_1.pdf
Luminaire size:
330x580x232
Manufacturer:
DAYE
Warranty (years):
5 years
Body color:
Balta
Protection class (IP):
IP65
Working temperature:
-40°C to +60°C
Product Type:
hibrīds
