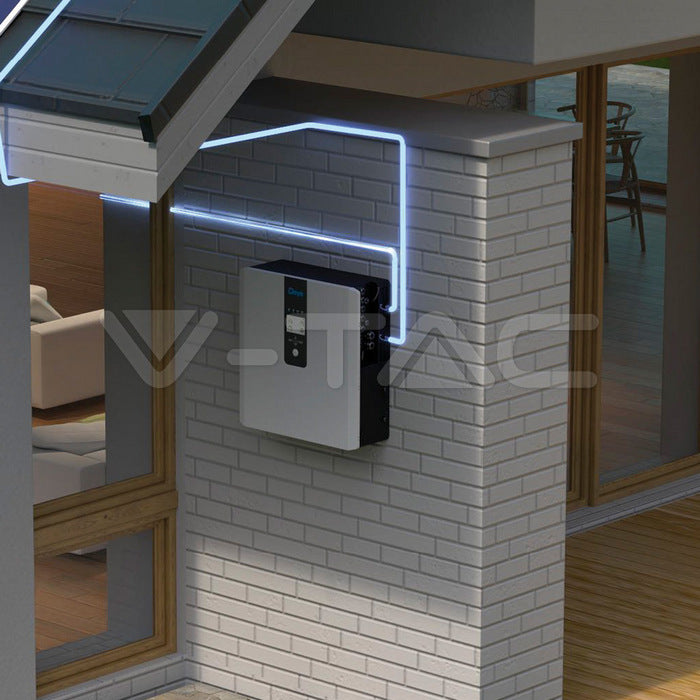

Deye 5 kW hybrid inverter and 5.3 kWh LiFePO4 battery storage system with 10-year warranty
Roll over image to zoom in Click on image to zoom
Deye 5 kW hybrid inverter and 5.3 kWh LiFePO4 battery storage system with 10-year warranty
Deye 5 kW hybrid inverter and 5.3 kWh LiFePO4 battery storage system with 10-year warranty

Deye 5 kW hybrid inverter and 5.3 kWh LiFePO4 battery storage system with 10-year warranty

SKU: 12276
€1.966,25

Description

Technical specification

General information

Electrical data
Power
Rated AC input/output active power (W): 5000/5000
Maximum DC solar panel input power (W): 10000
Maximum DC solar panel input power (W): 8000

Current
AC rated output current (A): 22.8 / 21.8
Maximum AC current (A): 25 / 24
Maximum continuous AC switching (grid to load) (A): 35
Maximum working DC input current (A): 18+18
Maximum short-circuit DC input current (A): 27+27
Number of MPP trackers: 2
Number of strings per MPP tracker: 1+1
Maximum DC charge/discharge current (A): 100

Voltage
Maximum AC input/output apparent power (VA): 5500
Maximum off-grid power: 2 times rated power, 10 seconds
Rated input/output voltage/range (V): 220V/230V, 0.85Un-1.1Un
Maximum solar panel input voltage (Vdc): 500
Solar panel ON voltage (Vdc): 125
MPPT voltage range (Vdc): 150 ~ 425
Full load MPPT voltage range (Vdc): 300 ~ 425
Rated solar panel input voltage (Vdc): 370

Frequency
Rated grid input/output frequency/range (Hz): 60 Hz / 55 Hz - 65 Hz

Power factor
From 0.8 for control to 0.8 for delay

Ruggedness
IP Class: IP65

Battery capacity
Battery chemistry: LiFePO4
Battery rated voltage (V): 51.2
Battery energy configuration (kWh): 5.32
Battery operating voltage (V): 44.8 ~ 57.6
Battery cycle life: ≥6000 ( at 25℃ ± 2℃, 0.5C / 0.5C, 70% EOL )

Working conditions
Temperature range: -10 ~ +55 °C

Dimensions
Dimensions (L x W x H): 616 × 191 × 690 mm

Product details
Order code: 12276
Product code: RW-F5.3-1H3
Number of units per pack: 1
Product weight: 71 kg

Additional information
Release date: 4 January 2025
Brand: V-TAC
Warranty: 10 years
