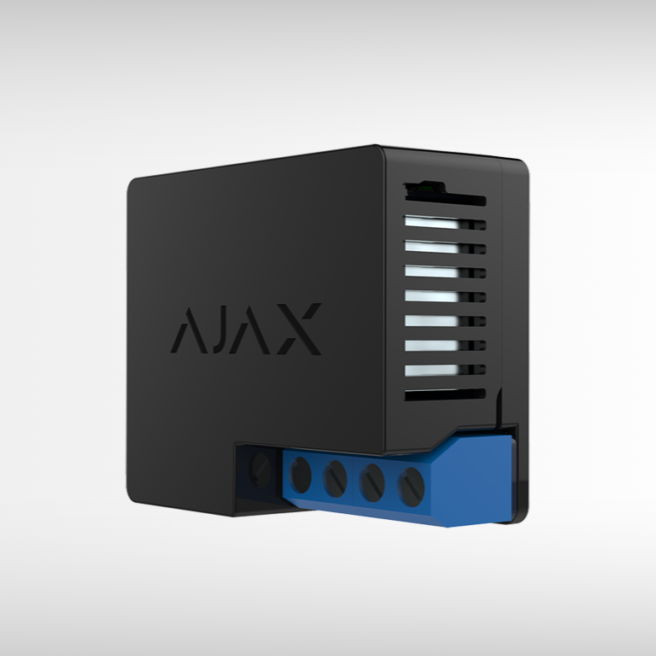

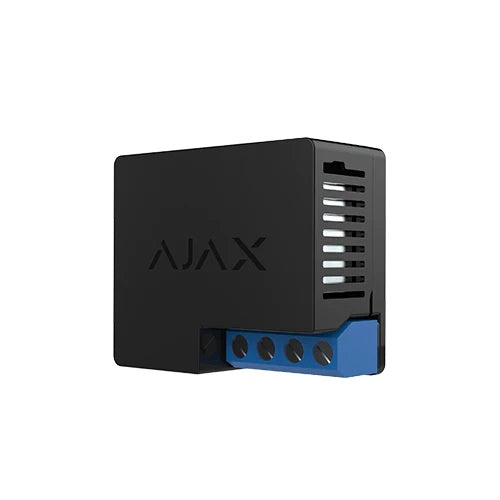

AJAX 12V Power Supply Control Relay

SKU: 367304856
Regular price€52,46 Sale price€41,13
Save €11,33

Description

AJAX Relay For remote control of 12V equipment. Only works with one of the AJAX Hubs.

When installing and operating electrical devices, observe the general electrical safety rules, as well as the requirements of the electrical safety regulations.

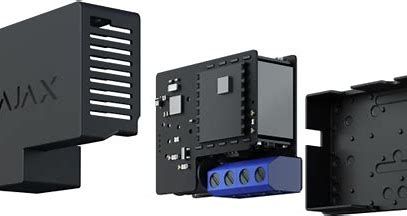

Connecting the relay to the hub takes less than a minute - just scan a QR code with the Ajax app. The miniature device (39×33×18 mm) easily fits into a junction box, electrical panel or switch box housing with a DIN holder. And the flexible external antenna ensures a stable connection.

Versatility of settings and low power consumption make the relay a universal tool for equipment control. The dry contact is not galvanically connected to the device's power supply, so it can be used in both low-voltage and household networks. The relay can easily be connected to a power supply unit paired with a backup battery.

Modern electric gates and barriers are equipped with a remote control. It consists of a controller and control devices such as a remote control. The controller receives commands from the control devices and activates the gate or barrier opening/closing mechanism.

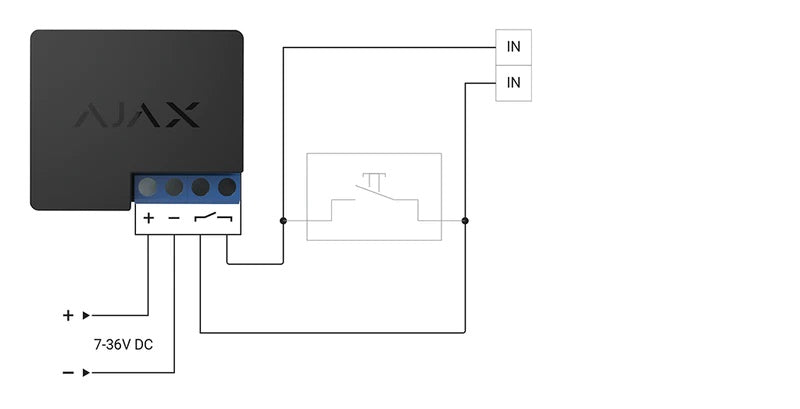

To integrate with Ajax, the controller must have a control input for connecting wired buttons and relays. The absence of such an input does not delay the connection, but it significantly complicates the process - the relay will have to be connected directly to the drive or controller board. Also, the controller may have a non-standard control input or special control and operation modes, which should also be taken into account during integration.

Sending information about the state of the gate/barrier ("closed" and "open") to the Ajax app is possible if the controller has a status output.

Device type: Wireless

Installation: In electrical distribution cabinet, distribution box

Works with all AJAX Hubs

Actuation element: Electromagnetic relay

Lifetime: 200,000 actuations

Voltage: Max — 36.5 V⎓, min — 6.5 V⎓

Maximum current: 5A at 24 V⎓, 13A at 230V~

Maximum working temperature: >65°C

Contacts: NO, NC

Adjustable pulse duration from 1 to 255 seconds

Operating temperature: From -20°С to +64°С

Protection class: IP20

Damping protection

Dimensions: 39x33x18mm

Weight: 25g

Specification

Product Type:
Control unit
