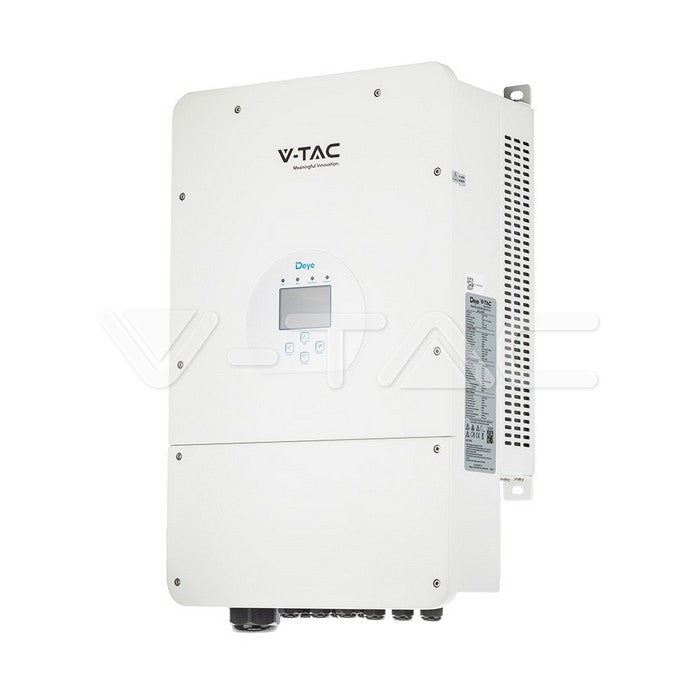

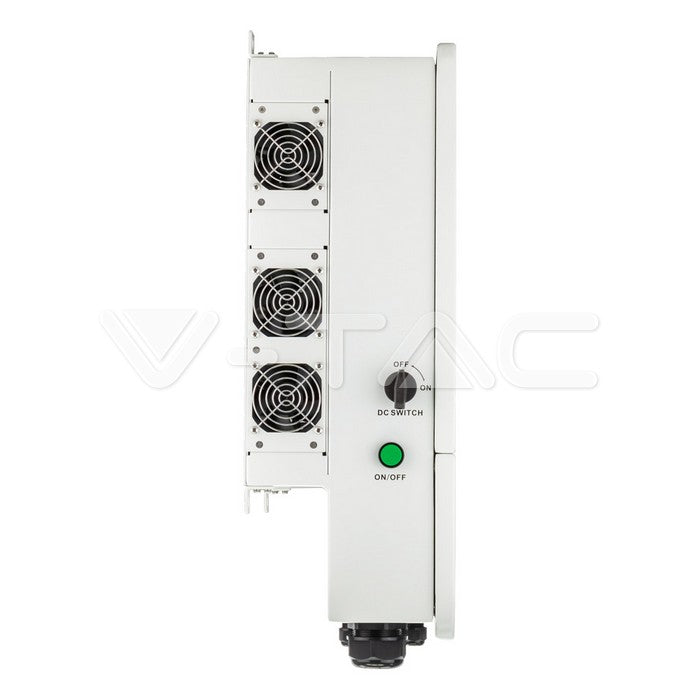

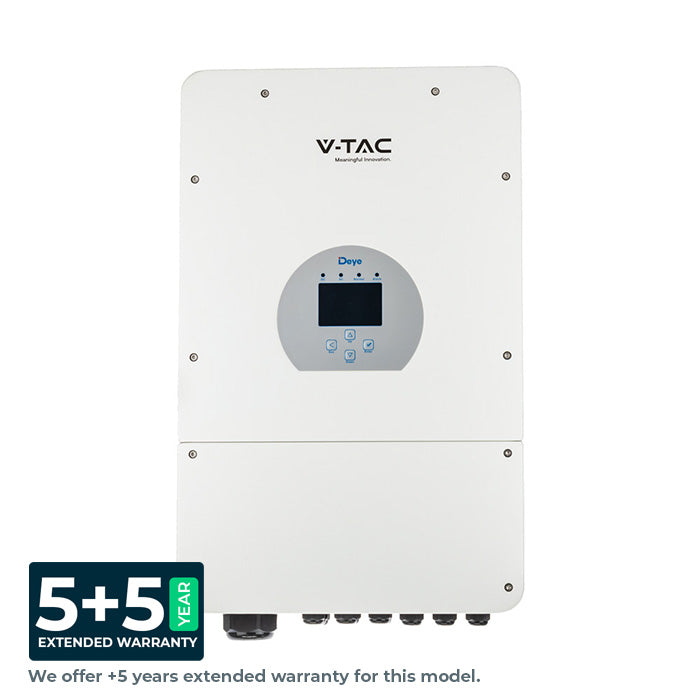

8KW 1F DEYE hybrid inverter (SUN-8K-SG01LP1-EU) for solar system with touch LCD display, single phase, IP65, 8000W/88000W
Roll over image to zoom in Click on image to zoom
8KW 1F DEYE hybrid inverter (SUN-8K-SG01LP1-EU) for solar system with touch LCD display, single phase, IP65, 8000W/88000W
8KW 1F DEYE hybrid inverter (SUN-8K-SG01LP1-EU) for solar system with touch LCD display, single phase, IP65, 8000W/88000W
8KW 1F DEYE hybrid inverter (SUN-8K-SG01LP1-EU) for solar system with touch LCD display, single phase, IP65, 8000W/88000W

8KW 1F DEYE hybrid inverter (SUN-8K-SG01LP1-EU) for solar system with touch LCD display, single phase, IP65, 8000W/88000W

SKU: 11803
€2.199,00
Data sheet

Description

8kW hybrid solar inverter with touch screen, single phase IP65 (EU specification)
Colour touch LCD, IP65 protection
DC pair and AC pair to retrofit existing solar system
Max. 16 pcs for parallel grid and o-grid operation; Support multiple batteries in parallel

General Information

Electrical Data
Current
  • PV Input Current: 26+26A;
  • AC Output Rated Current: 33.3/38.5A
  • Max AC Output Current: 36.7/42.3A
Wattage
  • Max. Input Power: 10400W;
  • Rated Output Power: 8000W;
  • Max. Output Power: 8800W;
Voltage
  • Start Voltage: 125V;
  • Rated Input Voltage: 370 (125-500);
  • Full-load DC Voltage Range: 200-425V;
  • MPPT Voltage Range: 150-425V;
Frequency 50Hz / 60Hz
Power Factor 0.8 lagging to 0.8 leading

Capabilities IP Rating IP65
Working conditions -40°C to +60°C, >45°C derating

Dimensions Size 420x670x233 mm
Item Weight 32 kg
Brand V-TAC
Warranty 5 years

Specification

Download 11803-SUN-8K-SG01LP1-EU-Manual-instructions.pdf
Download 11803-Warranty-Inverters-Deye_1.pdf
Download 11803-LVD.pdf
Download 11803-IEC-62109.pdf
Download 11803-SUN-8K-SG01LP1-EU-Technical-Specifications.pdf
Download 11803-Ning_SUN-7.6_8K-SG01LP1-EU_UNBED_EN50549-1_2019_U23-0248_ENG.pdf
Download 11803-Deye-SUN-Series-Hybrid-Inverter-10-Year-Limited-Warranty-for-Installation-in-Europe_1.pdf
Download 11803-EMC.pdf
Download 11803-CE-GZES1901010376PV-VDE0126.pdf
Luminaire size:
420x670x233
Manufacturer:
V-TAC
Warranty (years):
5
Body color:
Balta
Protection class (IP):
IP65
Working temperature:
40°C to +60°C
