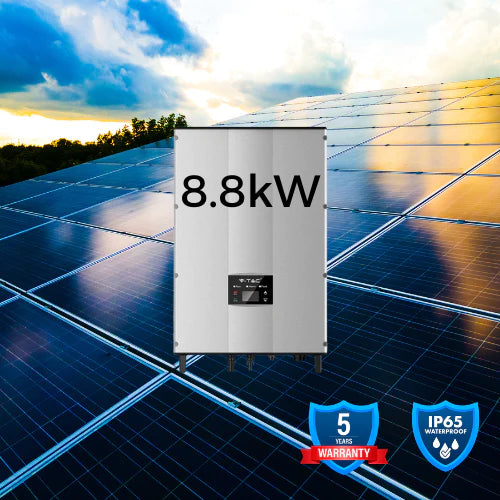

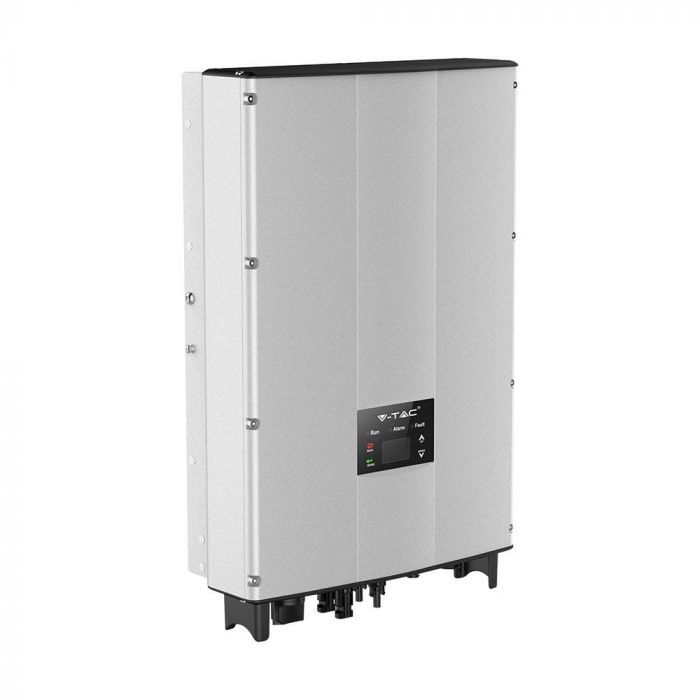

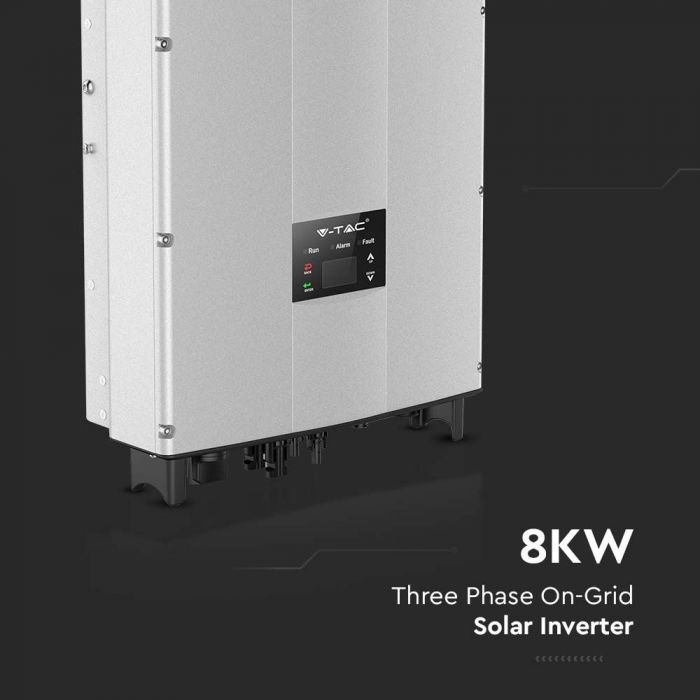

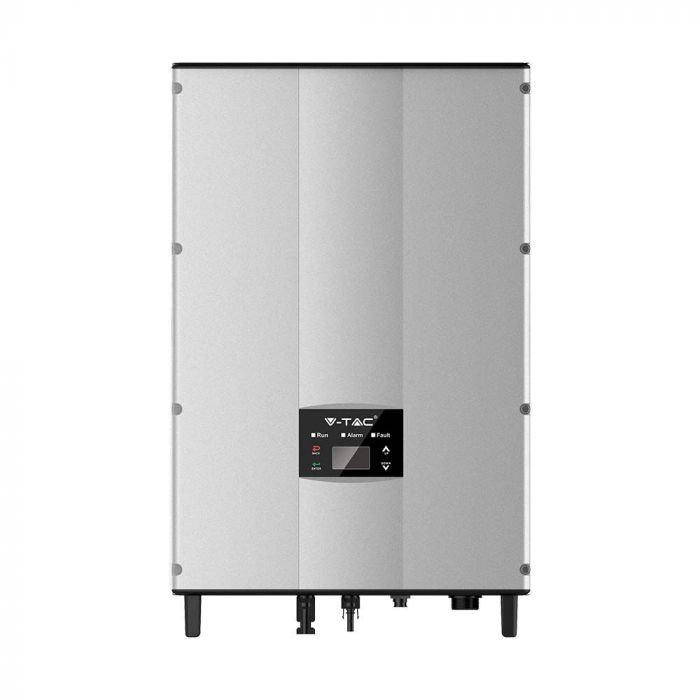

Description
- Converts electricity generated from the solar panels from DC to AC and distributes it across a three phase power supply
- Excess power is exported to the utility/electric grid, and when the required load is greater than the generated power, the discrepancy is supplied by the grid

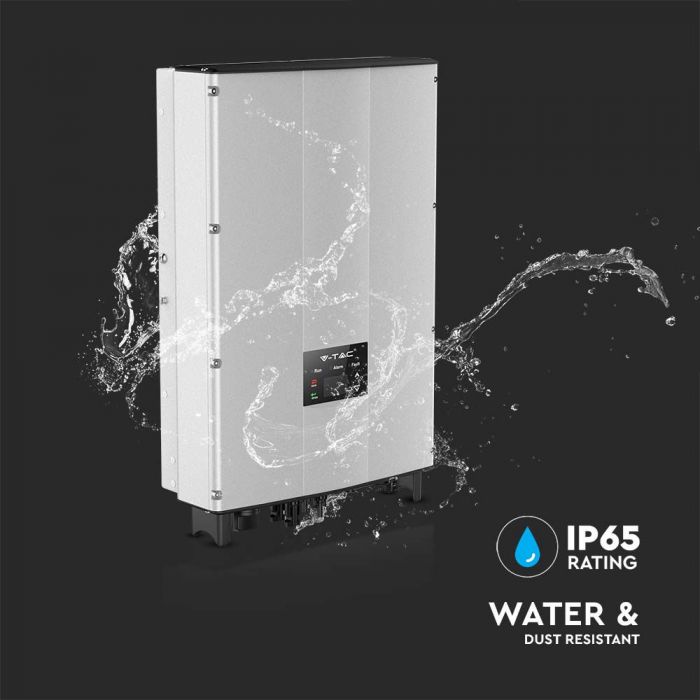

- IP65 rated enclosure ensures protection from moisture and dust
- Supports RS485, WiFi, and ethernet (optional) communication protocols
- Works with modular battery packs for a more flexible application
- Impressive MPPT efficiency (actual over expected output power) of 99.9%
|
Input (DC)
|
Maximum Input Power |
9000W
|
|
Maximum Input Voltage |
1000V |
|
|
Starting voltage/Minimum operating voltage |
220V / 150V
|
|
|
Maximum Power Point Tracking (MPPT) voltage range |
200-800V / 610V
|
|
|
Number of Maximum Power Point Trackers / String per Maximum Power Point Tracker |
2/1
|
|
|
Maximum current per MPPT per number of MPPTs |
12x2A |
|
|
Output (AC)
|
Maximum Output Current |
12.6A |
|
Rated Output Power |
8000W |
|
|
Maximum output power (PF=1) |
8000W |
|
|
Maximum full power |
8000W |
|
|
Power Factor |
≥0.99 (Nom. Power) |
|
|
THDi (Signal Harmonic Distortion Measurement) |
＜3% (Nom. Power)
|
|
|
Rated output voltage/frequency |
230/400V;220/380V, 3L+N+PE/3L+PE, 50/60 |
|
|
Productivity
|
Max. Productivity |
98.3% |
|
Productivity in Europe |
97.8% |
|
|
MPPT Productivity |
99.9% |
|
|
Protection |
Protection |
DC switch, AC short-circuit protection, overload protection, overvoltage protection, insulation protection, RCD, overvoltage protection, overcurrent protection, overcurrent protection, overheating protection, earthing def. |
|
Communication
|
Display |
2 inch LCD |
|
System language |
English/Chinese/German/Dutch |
|
|
Communication |
RS485 standard;Wi-Fi |
|
|
Certificates
|
Network connection standards |
IEC 61727(IEC62116), IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999, VDE0126-1-1, VDE-AR-N4105, G59/3, C10/11, AS/NZS 4777.2:2015, NB/T 32004-2013, PEA, ZVR |
|
Safety / EMC |
IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 |
|
|
Basic data
|
Dimensions |
575x360x150 mm |
|
Weight |
20kg |
|
|
Operating Temperature Range |
-25º~+60º (Power drops above 45ºC) |
|
|
Cooling method |
Smart cooling |
|
|
Protection standard |
IP65 |
|
|
Maximum height |
3000m (Power drops 2000m) |
|
|
Relative Humidity |
4~100%, condensation |
|
|
Topology |
Without transformer |
|
|
Power consumption at night |
<1W |
|
|
Warranty |
5 years |
