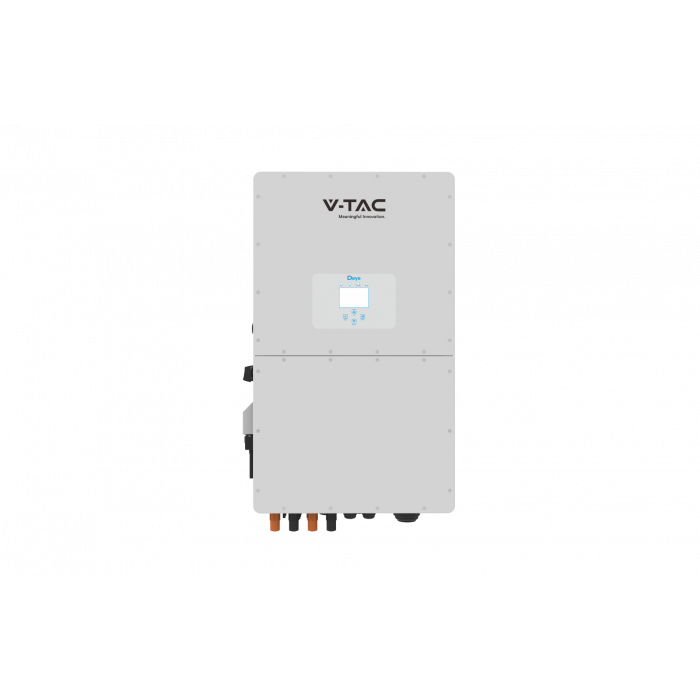

30kW Hybrid Solar Inverter Three Phase High Voltage

Roll over image to zoom in Click on image to zoom

30kW Hybrid Solar Inverter Three Phase High Voltage

Name: 30kW Hybrid Solar Inverter Three Phase High Voltage
Brand: Ledakcijas
SKU: 11998
Price: 4877.0 EUR
Availability: InStock

SKU: 11998

€4.877,00

Data sheet

Share this product

Specifications

General Information

Electrical Data

Current

Max. Operating PV Input Current (A) 36+36+36
Max. Input Short-Circuit Current (A) 55+55+55;
Rated AC Input/Output Current (A) 45.5/43.5;
Max. AC Input/Output Current (A) 50/47.9;

Wattage

Max. PV Input Power: 39000W;
Rated AC Input/Output Active Power (W): 30000W;
Peak Power (off-grid) (W) 1.5 times of rated power, 10s;

Voltage

Max. PV Input Voltage: 1000V;
MPPT Range: 150~850V;
Rated PV Input Voltage: 600V;
Start-up Voltage: 180V;

Frequency Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65

Power Factor 0.8 leading to 0.8 lagging

Capabilities IP Rating IP65

Working conditions -40 to +60℃, >45℃ Derating

Dimensions Size 527 x 894 x 294 mm

Product code SUN-30K-SG01HP3-EU-BM3

Item Weight 102 kg

Item Volume 0.1925

Brand V-TAC

Warranty

5 Years/10 Years;
Warranty Period Depends the Final Installation Site of Inverter;
More Info Please Refer to Warranty Policy;

Download 11998-LVD-License.pdf

Download 11998-EN-50549.pdf

Download 11998-CEI-0-21.pdf

Download 11998-Declaration-of-Conformity.pdf

Download 11998-Technical-Specs.pdf

Download 11998-EMC-License.pdf

Luminaire size:

527 x 894 x 294

Manufacturer:

V-TAC

Warranty (years):

Body color:

Balta

Protection class (IP):

IP65

Working temperature:

-40 to +60℃
