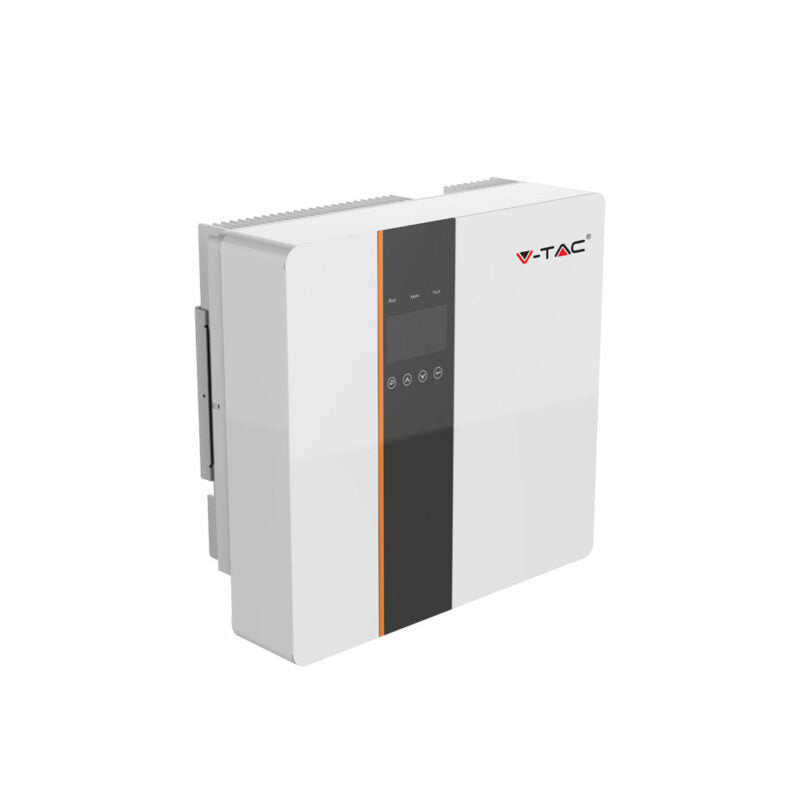

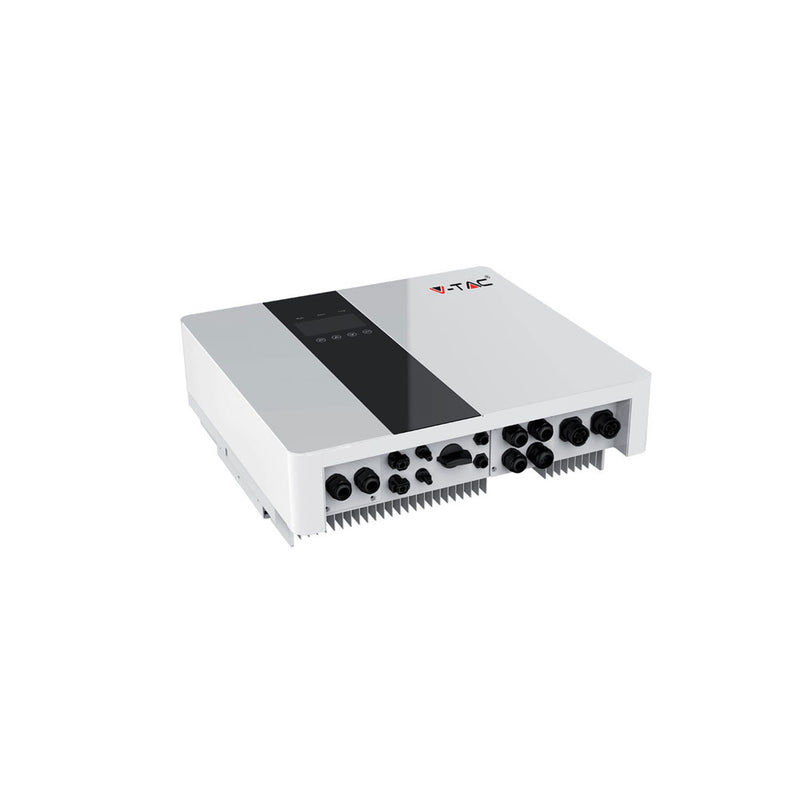

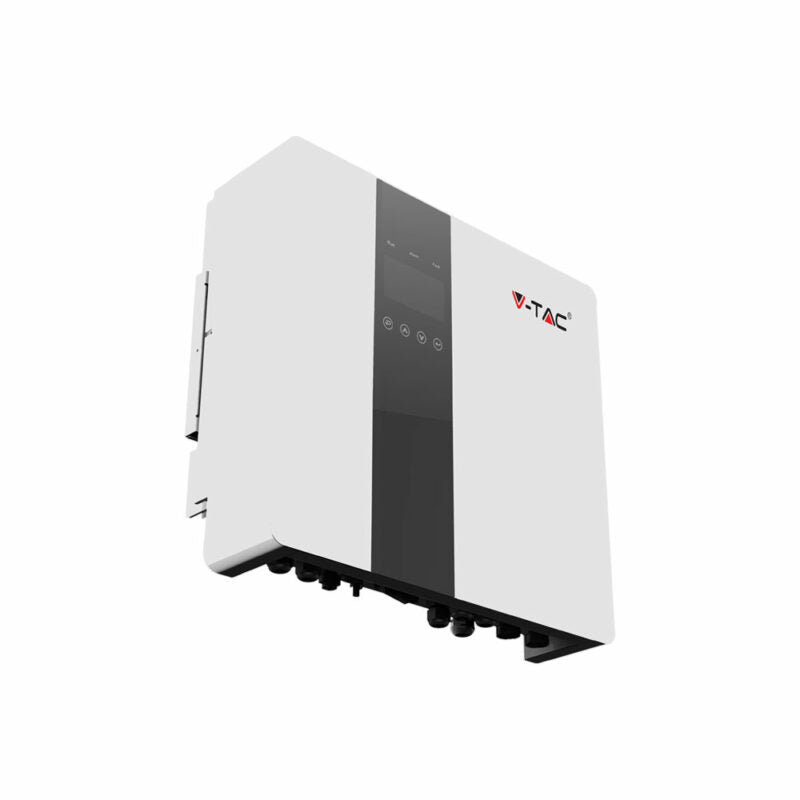

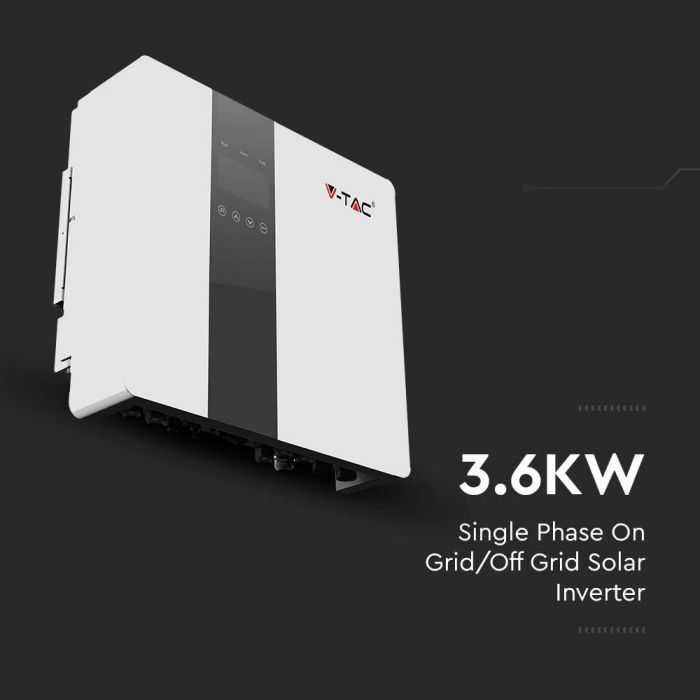

3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
Roll over image to zoom in Click on image to zoom
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66
3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66

3.6 KW Single Phase Network Hybrid Certified Inverter. Three-year warranty. IP66

SKU: 11374
€2.499,00 €1.200,00
Save €1.299,00
Data sheet

Description

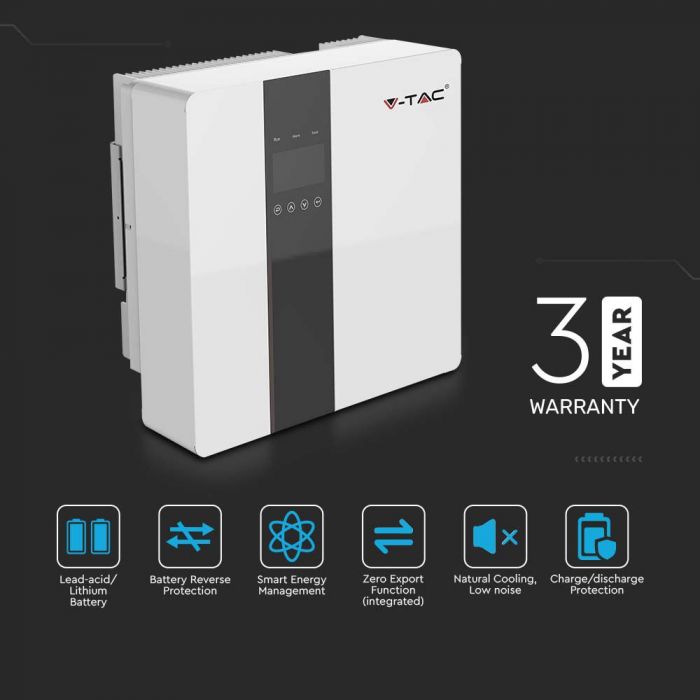

  • Designed to prevent electric bill surcharge from reverse current flow
  • IP65 rated enclosure ensures protection from moisture and dust
  • Get the most out of your solar energy system by having an efficiently controlled and managed energy flow
  • Zero Export limit or restrict the excess amount of solar power automatically based on the load requirement
  • Natural heat dissipation means no fan is required resulting to low noise operation
  • Easily check the status and settings with the built-in LCD display

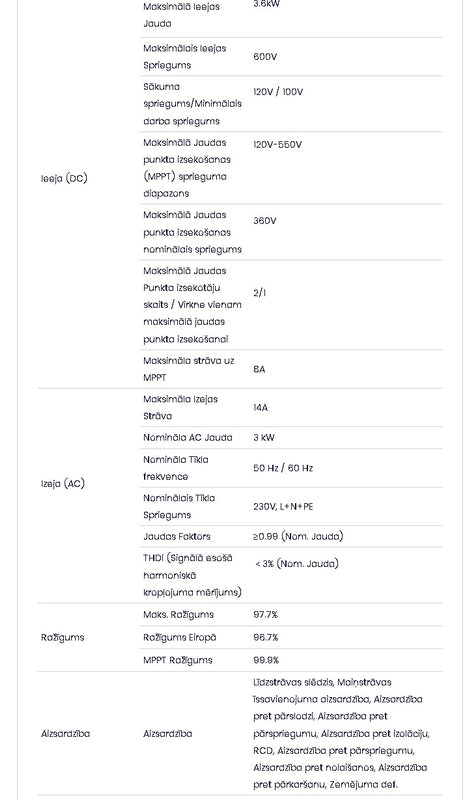

Input (DC)

Maximum Input Power

3.6kW

Maximum Input Voltage

600V

Starting voltage/Minimum operating voltage

120V / 100V

Maximum Power Point Tracking (MPPT) voltage range

120V-550V

Maximum Power Point Tracking Rated Voltage

360V

Number of Maximum Power Point Trackers / String per Maximum Power Point Tracker

2/1

Maximum current per MPPT

8A

Output (AC)

Maximum Output Current

14A

Rated AC Power

3 kW

Rated Mains Frequency

50 Hz / 60 Hz

Rated Mains Voltage

230V, L+N+PE

Power Factor

≥0.99 (Nominal Power)

THDi (Harmonic Distortion Distortion in Signal)

＜3% (Nom. Power)

Productivity

Max. Productivity

97.7%

Productivity in Europe

96.7%

MPPT Productivity

99.9%

Protection

Protection

DC switch, AC short-circuit protection, overload protection, overvoltage protection, insulation protection, RCD, overvoltage protection, overcurrent protection, overcurrent protection, overheating protection, earthing def.

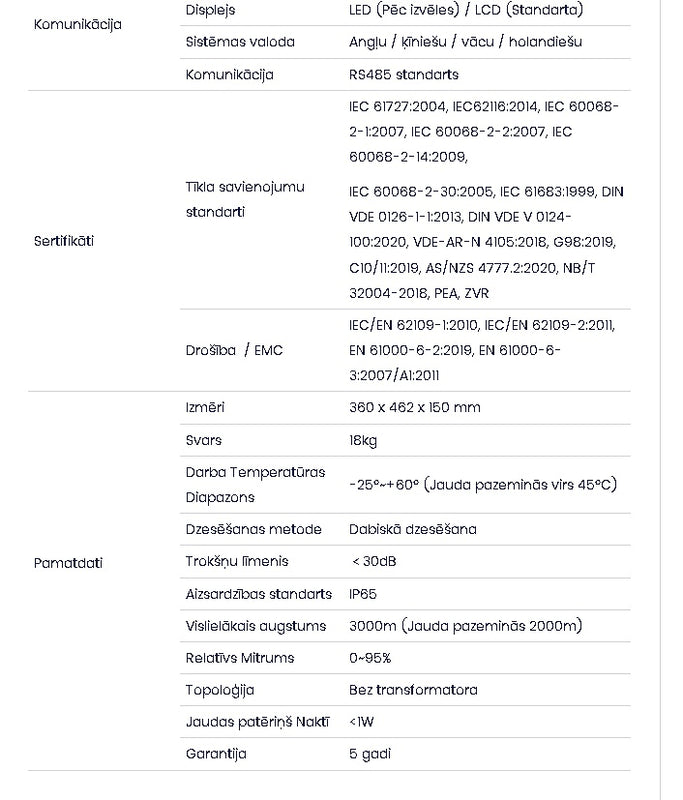

Communication

Display

LED (Optional) / LCD (Standard)

System language

English / Chinese / German / Dutch

Communication

RS485 standard

Certificates

Network connection standards

IEC 61727:2004, IEC62116:2014, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-14:2009,

IEC 60068-2-30:2005, IEC 61683:1999, DIN VDE 0126-1-1:2013, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018, G98:2019, C10/11:2019, AS/NZS 4777.2:2020, NB/T 32004-2018, PEA, ZVR

Safety / EMC

IEC/EN 62109-1:2010, IEC/EN 62109-2:2011, EN 61000-6-2:2019, EN 61000-6-3:2007/A1:2011

Basic data

Dimensions

360 x 462 x 150 mm

Weight

18kg

Operating Temperature Range

-25º~+60º (Power drops above 45ºC)

Cooling method

Natural cooling

Noise level

＜30dB

Protection standard

IP65

Maximum height

3000m (Power drops 2000m)

Relative Humidity

0~95%

Topology

Without transformer

Power Consumption At Night

<1W

Warranty

5 years

Specification

Download 11374-VT-66036103-instructions.pdf
Download 11374-Warranty-Card-V-TAC-INVT-Inverters_1.pdf
Download 11374-VT-66036103-EMC-License.pdf
Download 11374-VT-66036103-Inverter-On-Off-spec-sheets.pdf
Download CEI-0-21-CN-PV-230050-15-02-23-SKU-11374.pdf
Download 11374-VT-66036103-LVD-License.pdf
Download 11374-EN-50549-VT-66036103-VT-6606103-VT-6607103_1.pdf
Download 11374-Warranty-Terms-And-Conditions-Inverters-INVT_1.pdf

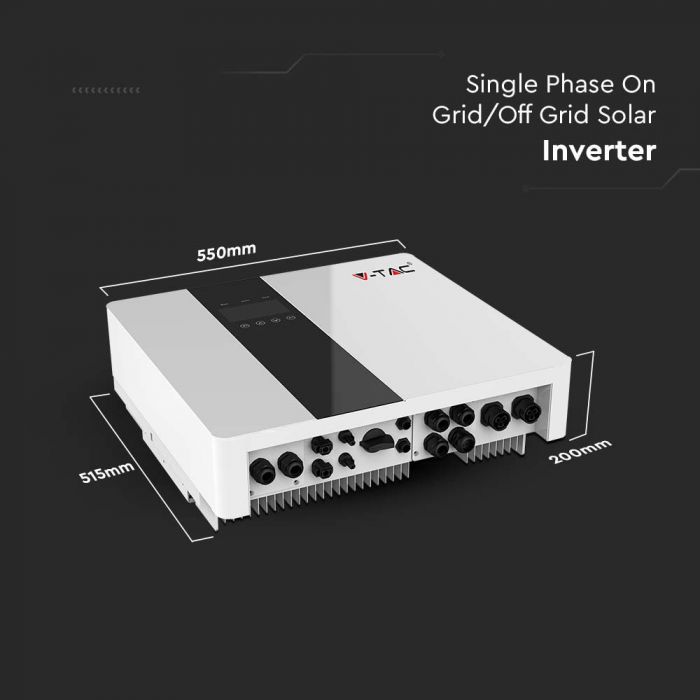

Luminaire size:
550 x 515 x 200
Manufacturer:
V-TAC
Warranty (years):
3
Body color:
Balta
Protection class (IP):
IP65
Working temperature:
-25°C to +60°C
Product Type:
hibrīds
