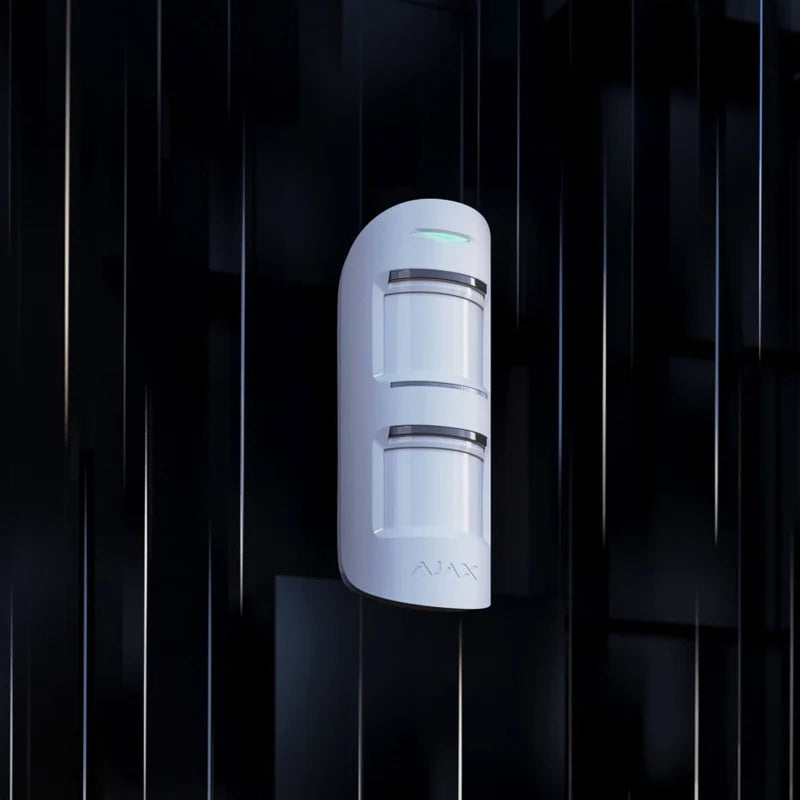

AJAX MotionProtect Outdoor Wireless outdoor motion detector with advanced anti-masking system and immunity to pets

Intelligent anti-masking system
An outdoor detector is a simple target. During the day, when the system is disarmed, intruders can damage the sensors or block their visibility to gain an advantage at night. To prevent sabotage, we have equipped MotionProtect Outdoor with a tamper button and an advanced anti-masking system that can remain active 24/7.

The MotionProtect Outdoor anti-masking system is automatically calibrated by analyzing the surrounding area when the device is mounted on the SmartBracket. Then, if an obstacle appears in the field of vision of the anti-masking sensors or they are painted, the detector quickly notices the tampering and raises the alarm. In addition, if someone tries to remove the detector from the SmartBracket, a sensitive manipulator is immediately activated.

Guaranteed alarm delivery
We have developed the Jeweler radio protocol to ensure uninterrupted operation of all security system devices. The jeweler provides two-way communication between the hub and MotionProtect Outdoor up to 1,700 meters away and provides alarms in less than 0.15 seconds. The radio protocol uses time frames to synchronize the communication of connected devices, authentication to prevent spoofing, and encryption to protect against data leakage. In addition, Jeweler is energy efficient and allows detectors to run for years with pre-installed batteries.

Ready for heat and cold
Ajax security systems protect users in all climate zones, from South Africa to Greenland. Hot or cold, snow or rain, MotionProtect Outdoor is ready for any weather. The outdoor detector operates up to 5 years from pre-installed batteries. In addition, to increase autonomy and simplify maintenance in extreme conditions, we have provided the possibility of using external power supply.

Detectors can be installed without a hood if they are installed under the hood

The detectors can be installed with a hood to protect the anti-masking system from rain and snow

Installation without mind games
To connect MotionProtect Outdoor to the hub, simply scan the QR code with your smartphone camera. Thanks to the SmartBracket mounting plate, the device can be installed without disassembling the case. Use the Ajax app to test and configure the detector.

At the same time, installing outdoor detectors is a professional task. This requires assessing the landscape, understanding potential intrusion points, and anticipating potential disruptions. To ensure that MotionProtect Outdoor works effectively and to avoid false alarms, please contact a qualified engineer

Classification: Electro-optical radio channel security detector

Recommended installation height: 0.8 - 1.3 m

Compatibility: Works with all Ajax hubs and range extenders

Operating temperature range: From -25°С to +60°С

Protection class: IP55

Sizes:  183 × 70 × 65 mm

Weight: 322 g
