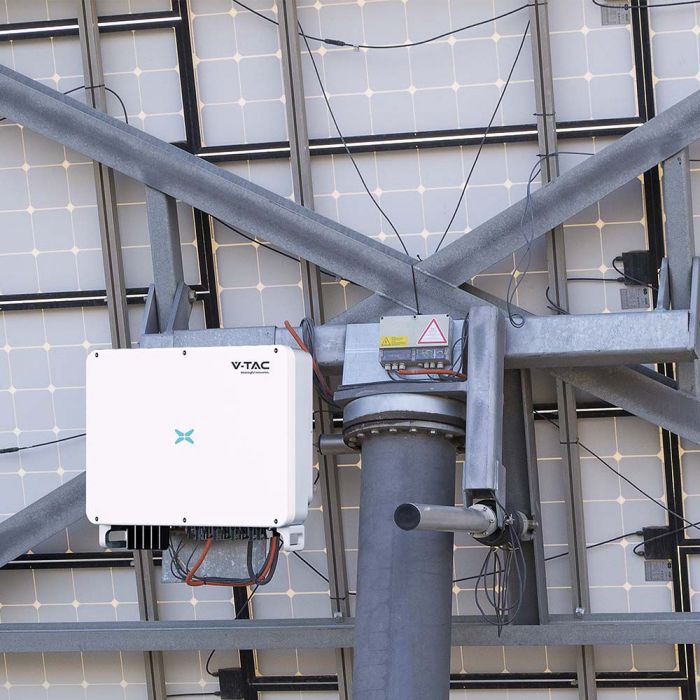

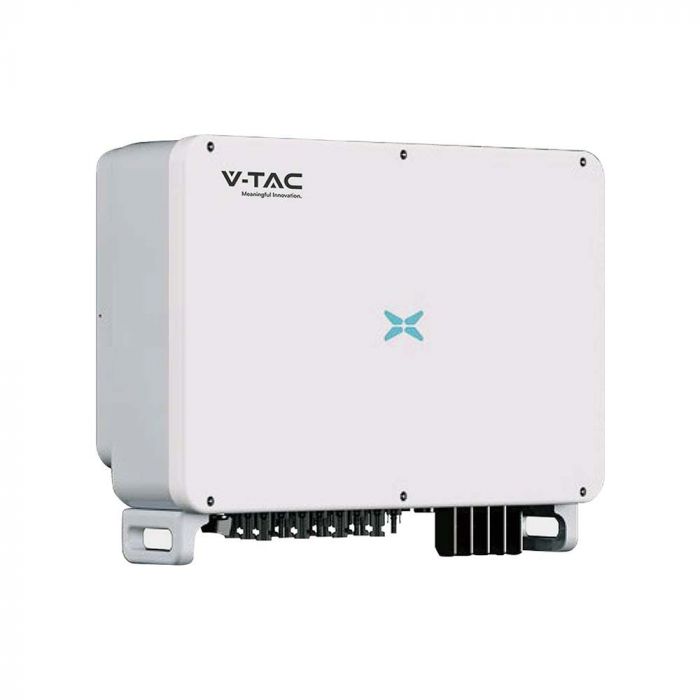

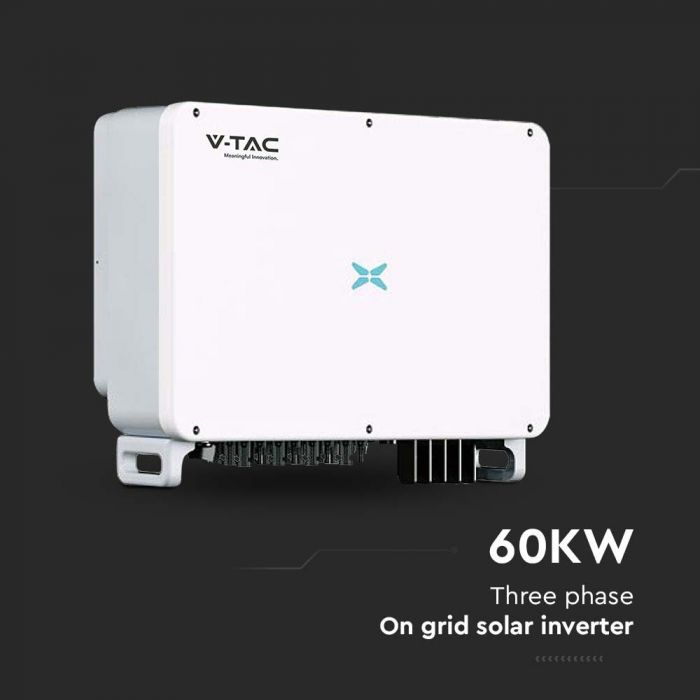

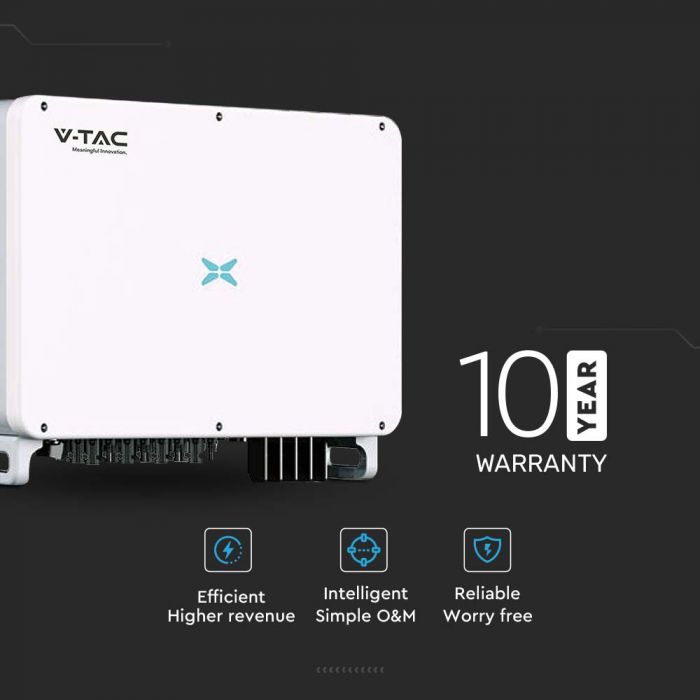

60kW On Grid Solar Inverter Three Phase with Wifi Dongle

Artikuls: 11631
Standarta cena€2.751,00 Akcijas cena€2.116,00
Ietaupi €635,00

PVN iekļauts cenā Piegāde aprēķināta apmaksas laikā

Apraksts

Specifications

General Information

Electrical Data
Current
  • Max. Current per MPPT: 39A / 26А / 39А / 26А;
  • Max. Short Circuit Current per MPPT: 48A / 32А / 48А / 32А
  • Max. Output Current (AC): 79.7A
Wattage
  • Max. Input Power: 80kW;
  • Rated Output Power: 50kW;
  • Max. Output Power: 55kVA;
Voltage
  • Max. Input Voltage: 1100V;
  • Start Voltage: 250V;
  • Rated Input Voltage: 600V;
  • Full-load MPP Voltage Range: 520V ~ 850V;
  • MPPT Voltage Range: 200V ~ 1000V;
  • Rated Grid Voltage: 230Vac /400Vac;
Frequency Rated Grid Frequency 50Hz / 60Hz
Power Factor >0.99 (0.8 lagging~0.8 leading)

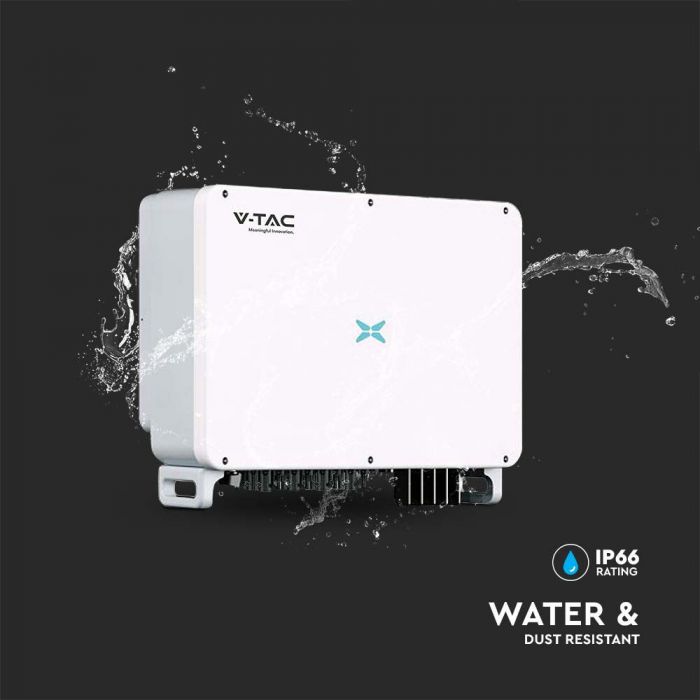

Capabilities IP Rating IP66
Working conditions -30°C to +60°C

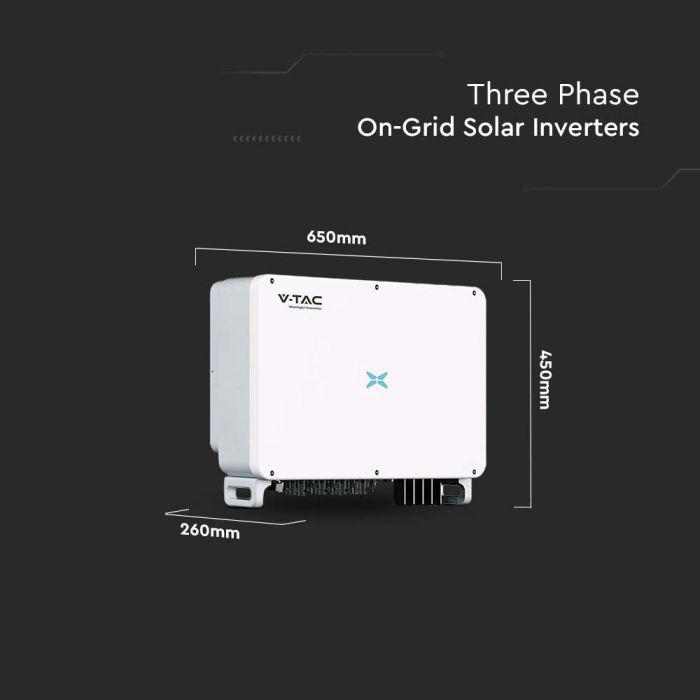

Dimensions Size 650 x 450 x 260 mm
1
Product code VT-61060
Item Weight 50 kg
Brand V-TAC
Warranty 10 years
