Apraksts

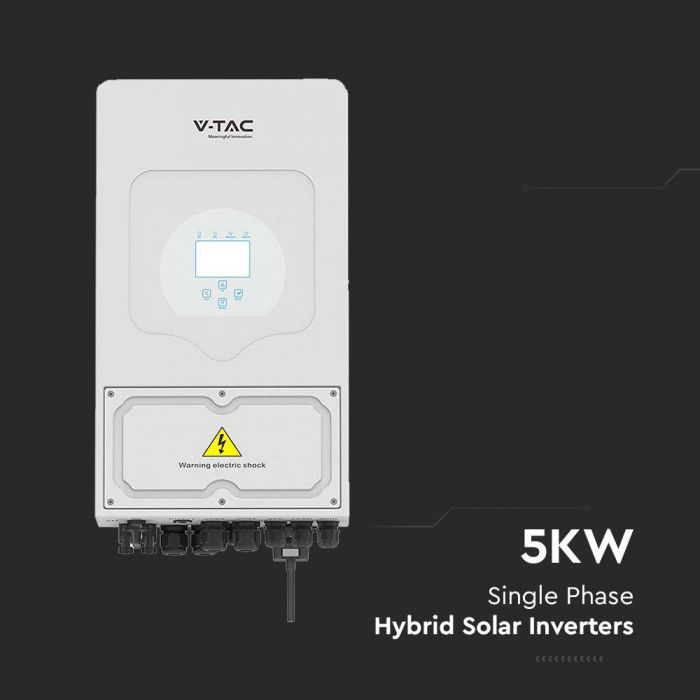

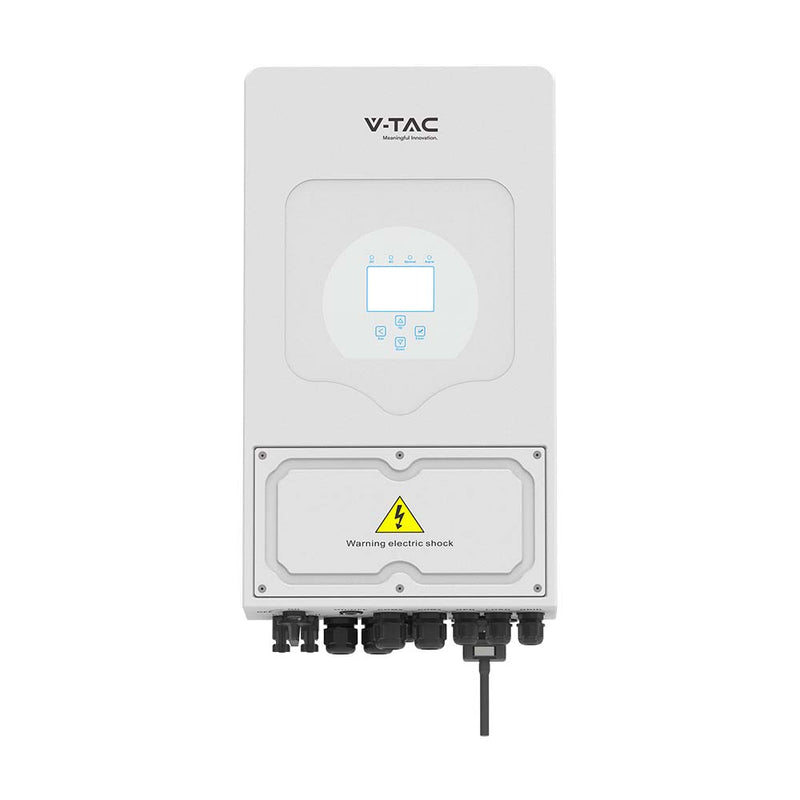

- 5kW Hybrid Solar Inverter with touch lcd display-single phase IP65 (EU specification)
- Colorful touch LCD, IP65 protection degree

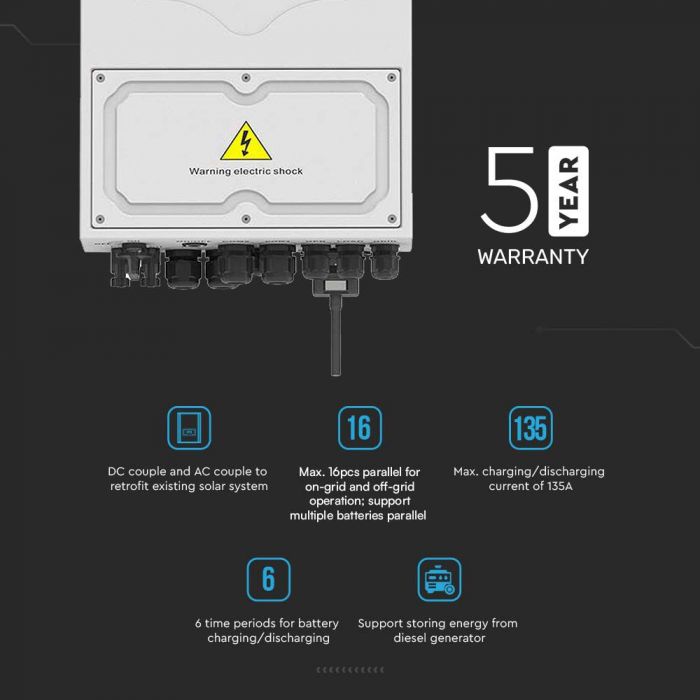

- DC couple and AC couple to retrofit existing solar system
- Max. 16pcs parallel for on-grid and o-grid operation; Support multiple batteries parallel
Model |
SUN-3.6K-SG03LP1-EU |
SUN-5K-SG03LP1-EU |
SUN-6K-SG03LP1-EU |
Battery Input Data |
|||
Battery Type |
Lead-acid or Lithium-ion |
||
Battery Voltage Range (V) |
40~60 |
||
Max. Charging Current (A) |
90 |
120 | 135 |
Max. Discharging Current (A) |
90 |
120 | 135 |
External Temperature Sensor |
Yes
|
||
Charging Curve |
3 Stages / Equalization |
||
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
PV String Input Data |
|||
Max. DC Input Power (W) |
4680 |
6500 | 7800 |
Rated PV Input Voltage (V)
|
370 (125~500) |
||
Start-up Voltage (V)
|
125 |
||
MPPT Voltage Range (V)
|
150~425 |
||
Full Load DC Voltage Range |
300~425 |
||
PV Input Current (A) |
13+13 |
||
Max. PV ISC (A) |
17+17 |
||
No.of MPPT Trackers |
2 |
||
No.of Strings Per MPPT Tracker |
1+1 |
AC Output Data |
|||
Rated AC Output Active Power (W)
|
3600 |
5000 | 6000 |
Max AC Output Active Power (W)
|
3690 |
5500 | 6600 |
AC Output Rated Current (A) |
16.4/15.7 |
22.7/21.7 | 27.3/26.1 |
Max AC Output Current (A)
|
18/17.2 |
25/23.9 | 30/28.7 |
Max. Continuous AC Passthrough (A) |
35 |
40 |
|
Peak Power (offff grid) |
2 time of rated power, 10 S
|
||
Power Factor Adjustment Range
|
0.8 leading to 0.8 lagging |
||
Power Factor
|
1 |
||
Output Frequency and Voltage |
50/60Hz; L/N/PE 220/230Vac
|
||
Grid Type |
Single Phase |
||
Total Harmonic Distortion (THD) |
<3% (of nominal power)
|
||
DC Current Injection |
<0.5% In
|
Efficiency |
|
Max. Efficiency |
97.60% |
Euro Efficiency |
96.50% |
MPPT Efficiency |
99.90% |
Protection |
|
Integrated
|
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection
|
Over Voltage Category
|
DC Type II / AC Type Ⅲ |
Certifications and Standards |
|
Grid Regulation |
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
|
Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
General Data |
|
Operating Temperature Range (℃) |
-40~60℃, >45℃ Derating |
Cooling |
Smart cooling |
Noise (dB) |
≤30 dB
|
Communication with BMS |
RS485; CAN |
Weight (kg) |
20.5 |

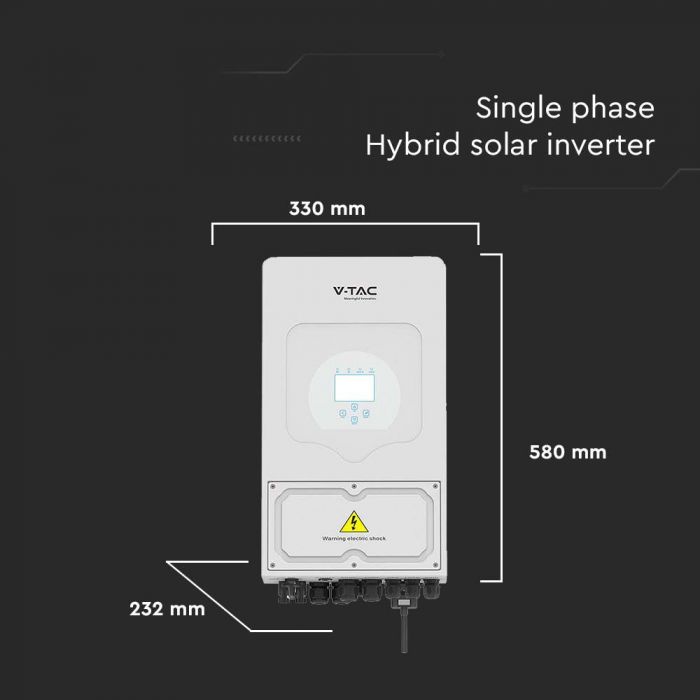

Cabinet Size (WxHxD mm)
|
330×580×232 (Excluding Connectors and Brackets)
|
Protection Degree |
IP65 |
Installation Style |
Wall-mounted |
Warranty |
5 Years (10 Years Optional)
|
