Remote control of security system power supply using Ajax WallSwitch power relay

The Ajax WallSwitch power relay connects to a 110 V / 230 V network and is designed to close and open the circuit on command.

The relay can withstand a load of up to 3 kW, which is enough to connect even a device that requires a large amount of power. You can find out about this feature of the device through the Ajax application, where the user can check the energy consumption thanks to WallSwitch. Ajax WallSwitch protects security devices from surges and surges.

Protects devices from overvoltage and voltage surges

Operates in bistable or pulse mode

Allows you to control the consumption of electricity

Installation
No extra effort

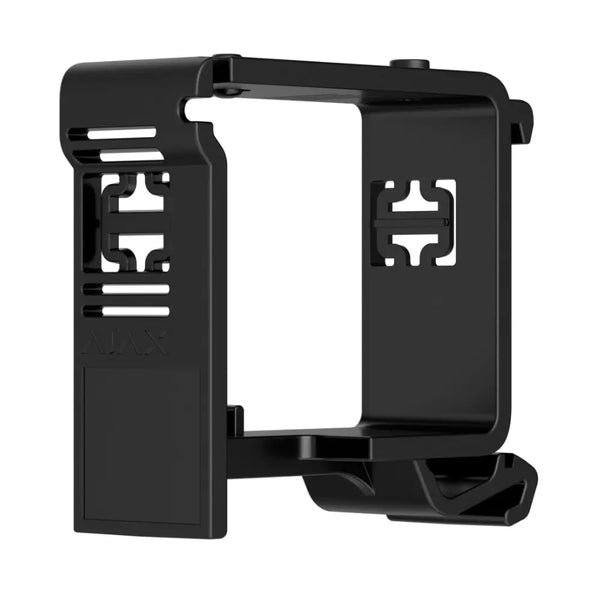

Connecting the WallSwitch to the hub takes less than a minute - just scan a QR code with the Ajax app. The miniature relay (39×33×18 mm) is easy to insert into a recess in a wall plate, electrical appliance housing or electrical panel with a DIN holder. A flexible external antenna ensures stable communication.

Flood prevention system
Facility lighting with alarm
Power cut in case of fire
Presence simulation

Classification : Radio channel relay unit

Device type: With remote control

Installation method : In the wall plate

Compatibility: Works with all Ajax hubs, range extenders

Actuation element: Relay

Surge protection:
For 230 V ~ mains: maximum - 264 V, minimum - 161 V
For 110 V ~ mains: maximum - 126 V, minimum - 77 V

Relay service life:
200,000 activations

Maximum load current: 13 A

Maximum temperature protection: >65°C

Allowable power:
Resistive load at 230 V — up to 3 kW
Resistive load at 110 V — up to 1.5 kW

Electric power meter function: Available

Power supply: 110−230 V±10% 50/60 Hz

Alarm delivery time: 0.15 s

Dimensions: 39 × 33 × 18 mm

Weight: 30 g

Warranty: 24 months

Product Type:

Control unit
